5103.015.220 / 15103015220 RQB90-M M20 x 1.5 mm Metric FLEXAquick® Black 90 degree bend elbow connector for 15.8 mm OD conduit, IP68 sealing

Product Name:
5103.015.220 / 15103015220 RQB90-M M20 x 1.5 mm Metric FLEXAquick® Black 90 degree bend elbow connector for 15.8 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15103015220 Categories , , ,

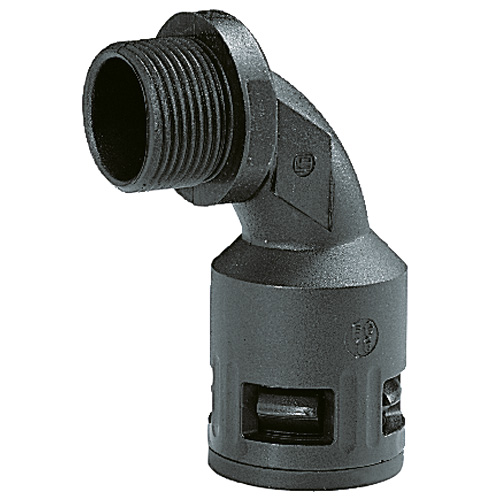

The Flexaquick® RQB90-M 15103015220 (Old Part Number 5103.015.220) is a Black plastic 90° bend elbow conduit connector with metric M20 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQB90-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 9
Stock: 9 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

9 in stock

Quantity Unit Price Ext. Price
1 US$10.22 US$10.22
5 US$9.91 US$49.57
10 US$9.71 US$97.09
15 US$9.20 US$137.97
25 US$8.69 US$217.18
50 US$8.18 US$408.80
100 US$7.67 US$766.50
250 US$7.15 US$1,788.50
500+ US$6.64 US$3,321.50+
Unit Cost : US$
Extended Cost : US$10.22
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQB90-M
Part Number

15103015220
Part Number (Old)

5103.015.220
Colour

Black
Thread Type

Metric
Thread Size

M20 x 1.5
Thread Length C (mm)

12
Body Length D (mm)

62
Body Length E (mm)

45
Material

PA6 Plastic
OD Outside Diameter (mm)

15.8
ΦI Inside Diameter (mm)

10
ΦB Max Outer Diameter (mm)

23
Weight (kg|100)

1.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113191885

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
