5103.015.020 / 15103015020 RQB90-M M20 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 15.8 mm OD conduit, IP68 sealing

Product Name:
5103.015.020 / 15103015020 RQB90-M M20 x 1.5 mm Metric FLEXAquick® Grey 90 degree bend elbow connector for 15.8 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15103015020 Categories , , ,

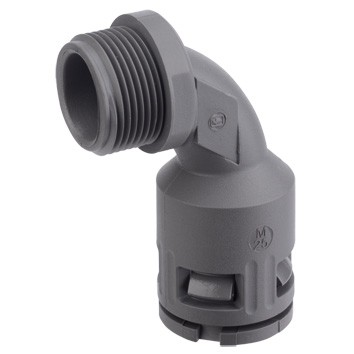

The Flexaquick® RQB90-M 15103015020 (Old Part Number 5103.015.020) is a Grey plastic 90° bend elbow conduit connector with metric M20 x 1.5 mm outer thread.

It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!

Use the RQB90-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$10.49 US$10.49
5 US$10.18 US$50.88
10 US$9.97 US$99.66
15 US$9.44 US$141.62
25 US$8.92 US$222.91
50 US$8.39 US$419.60
100 US$7.87 US$786.75
250 US$7.34 US$1,835.75
500+ US$6.82 US$3,409.25+
Unit Cost : US$
Extended Cost : US$10.49
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQB90-M
Part Number

15103015020
Part Number (Old)

5103.015.020
Colour

Grey
Thread Type

Metric
Thread Size

M20 x 1.5
Thread Length C (mm)

12
Body Length D (mm)

62
Body Length E (mm)

45
Material

PA6 Plastic
OD Outside Diameter (mm)

15.8
ΦI Inside Diameter (mm)

10
ΦB Max Outer Diameter (mm)

23
Weight (kg|100)

1.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113191755

Data Sheet

Properties

  • resistant against oil and benzine
  • highly resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
