Flexa RQB1-90-M 5104.034.240 / 15104034240

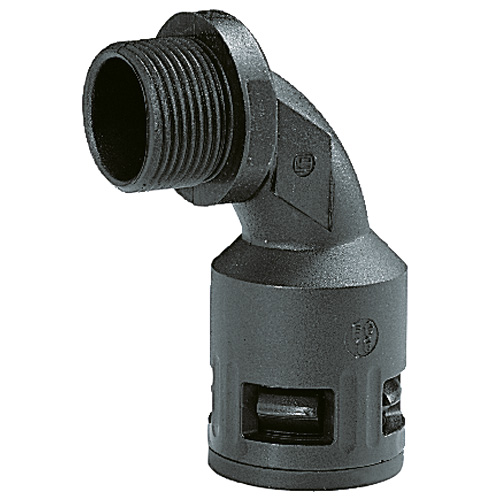

The Flexa RQB1-90-M 15104034240 (Old Part Number 5104.034.240) is described as a plastic 90° elbow conduit connector with metric M40 x 1.5 outer thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$31.68 | CAD$31.68 |
| 5 | CAD$28.51 | CAD$142.54 |
| 10 | CAD$25.34 | CAD$253.40 |
| 20 | CAD$23.76 | CAD$475.13 |
| 50 | CAD$22.17 | CAD$1,108.63 |
| 100+ | CAD$20.59 | CAD$2,058.88+ |
Unit Cost : CAD$
Extended Cost : CAD$31.6751
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQB1-90-M |
| Part Number | 15104034240 |
| Part Number (Old) | 5104.034.240 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M40 x 1.5 |
| Thread Length C (mm) | 14 |
| Body Length D (mm) | 100.5 |
| Body Length E (mm) | 74 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 34.5 |
| ΦI Inside Diameter (mm) | 29 |
| ΦB Max Outer Diameter (mm) | 44 |
| Weight (kg|100) | 5.4 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113191175 |
Data Sheet
Properties
- resistant against oil and benzine
- highly resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
