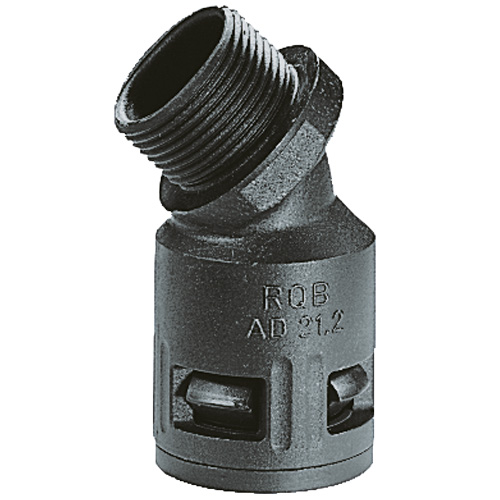

5020.089.211 / 15020089211 RQB45-P PG 11 FLEXAquick® black 45 degree elbow connector for 15.8 mm OD conduit
The Flexaquick RQB45-P 15020089211 (Old Part Number 5020.089.211) is a Black plastic 45° elbow conduit connector with PG 11 outer thread.
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in sealing. Installs in seconds for Quick “on” assembly or Quick “off” disassembly. NO tools required!
In Stock: 70
Stock: 70 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
70 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$10.25 | CAD$10.25 |
| 5 | CAD$9.94 | CAD$49.71 |
| 10 | CAD$9.74 | CAD$97.38 |
| 15 | CAD$9.23 | CAD$138.38 |
| 25 | CAD$8.71 | CAD$217.81 |
| 50 | CAD$8.20 | CAD$410.00 |
| 100 | CAD$7.69 | CAD$768.75 |
| 250 | CAD$7.18 | CAD$1,793.75 |
| 500+ | CAD$6.66 | CAD$3,331.25+ |
Unit Cost : CAD$
Extended Cost : CAD$10.25
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQB45-P |
| Part Number | 15020089211 |
| Part Number (Old) | 5020.089.211 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 11 |
| Thread Length C (mm) | 12 |
| Body Length E (mm) | 43 |
| Body Length F (mm) | 51 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 10 |
| ΦB Max Outer Diameter (mm) | 20 |
| Weight (kg|100) | 1.2 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113187611 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
