Flexa RQB1-45-M 5101.010.212 / 15101010212

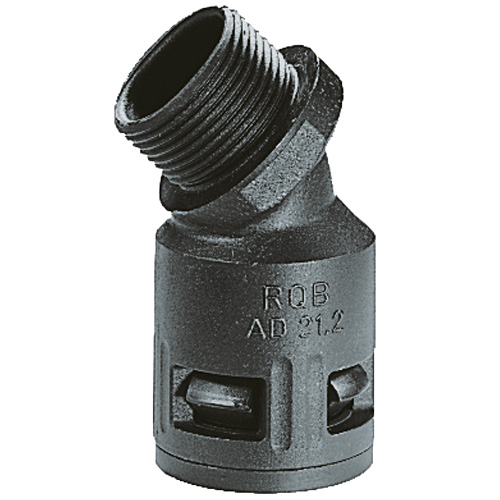

The Flexa RQB1-45-M 15101010212 (Old Part Number 5101.010.212) is described as a plastic 45° elbow conduit connector with metric M12 x 1.5 outer thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and conical sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$12.24 | CAD$12.24 |
| 5 | CAD$11.88 | CAD$59.38 |
| 10 | CAD$11.63 | CAD$116.31 |
| 15 | CAD$11.02 | CAD$165.28 |
| 25 | CAD$10.41 | CAD$260.16 |
| 50 | CAD$9.79 | CAD$489.72 |
| 100 | CAD$9.18 | CAD$918.22 |
| 250 | CAD$8.57 | CAD$2,142.51 |
| 500+ | CAD$7.96 | CAD$3,978.94+ |
Unit Cost : CAD$
Extended Cost : CAD$12.2429
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQB1-45-M |
| Part Number | 15101010212 |
| Part Number (Old) | 5101.010.212 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M12 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length E (mm) | 39 |
| Body Length F (mm) | 45 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 10 |
| ΦI Inside Diameter (mm) | 6.5 |
| ΦB Max Outer Diameter (mm) | 17 |
| Weight (kg|100) | 0.8 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113191342 |
Data Sheet
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
