5101.042.050 / 15101042050 RQB1-45-M M50 x 1.5 mm Metric FLEXAquick® Grey 45 degree elbow connector for 42.5 mm OD conduit, IP66

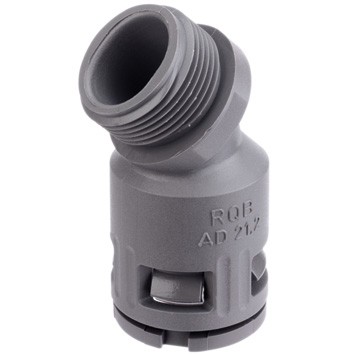

The FLEXAquick® RQB1-45-M 15101042050 (Old Part Number 5101.042.050) is a grey plastic 45° elbow conduit connector with metric M50 x 1.5 mm outer thread. It features the FLEXAquick® quick-connect fitting system with an integrated lock and release sleeve clip and built-in IP66 sealing.
No tools are required for quick conduit connection or disconnection.
The 45° elbow design provides a more gradual conduit direction change than a 90° elbow, helping where a softer angled conduit entry is needed in compact installations.
Use the RQB1-45-M with fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multilayer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$36.23 | US$36.23 |
| 5 | US$32.61 | US$163.04 |
| 10 | US$28.98 | US$289.84 |
| 20 | US$27.17 | US$543.45 |
| 50 | US$25.36 | US$1,268.05 |
| 100+ | US$23.55 | US$2,354.95+ |
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQB1-45-M |
| Part Number | 15101042050 |
| Part Number (Old) | 5101.042.050 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M50 x 1.5 |
| Thread Length C (mm) | 17 |
| Body Length E (mm) | 82.5 |
| Body Length F (mm) | 86 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 42.5 |
| ΦI Inside Diameter (mm) | 36 |
| ΦB Max Outer Diameter (mm) | 52 |
| Weight (kg|100) | 6.5 |
| IP Rating | IP 66 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113191311 |
Data Sheet
Applications
- Machine and Plant Constructions
- Automotive
- Automation
- Electrical Installations
Certifications
