Flexa RQG2-P 5020.081.211 / 15020081211

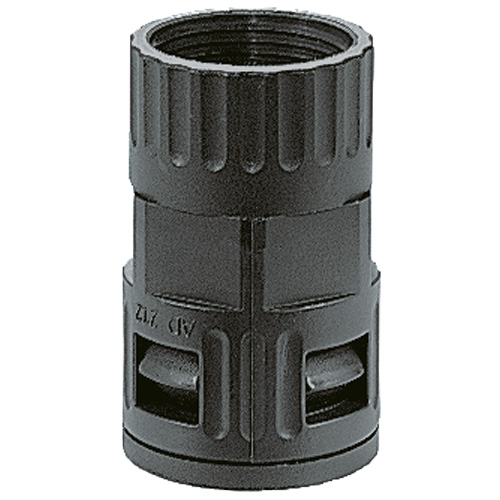

The Flexa RQG2-P 15020081211 (Old Part Number 5020.081.211) is described as a straight plastic conduit connector with PG 11 inner thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 100
Stock: 100 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
100 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$9.46 | US$9.46 |
| 5 | US$9.18 | US$45.88 |
| 10 | US$8.99 | US$89.87 |
| 15 | US$8.51 | US$127.71 |
| 25 | US$8.04 | US$201.03 |
| 50 | US$7.57 | US$378.40 |
| 100 | US$7.10 | US$709.50 |
| 250 | US$6.62 | US$1,655.50 |
| 500+ | US$6.15 | US$3,074.50+ |
Unit Cost : US$
Extended Cost : US$9.46
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-P |
| Part Number | 15020081211 |
| Part Number (Old) | 5020.081.211 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 11 |
| Thread Length C (mm) | 15 |
| Body Length D (mm) | 39.5 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 12.5 |
| ΦB Max Outer Diameter (mm) | 23 |
| ΦB1 (mm) | 23 |
| Weight (kg|100) | 1 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113184245 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
