5020.081.209 / 15020081209 RQG2-P PG9 female thread Black FLEXAquick® conduit adapter backshell for 13.0 mm OD conduit, IP68 sealing

Product Name:
5020.081.209 / 15020081209 RQG2-P PG9 female thread Black FLEXAquick® conduit adapter backshell for 13.0 mm OD conduit, IP68 sealing

Flexa Logo
Mfr. Part # 15020081209 Categories , , ,

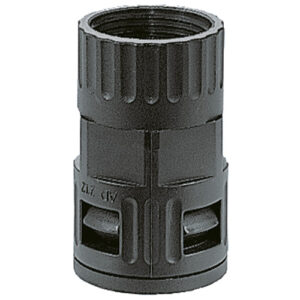

The Flexa RQG2-P 15020081209 (Old Part Number 5020.081.209) is a straight Black plastic conduit backshell adapter connector with PG9 female inner thread.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQG2-P is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 132
Stock: 132 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

132 in stock

Quantity Unit Price Ext. Price
1 US$9.25 US$9.25
5 US$8.97 US$44.86
10 US$8.79 US$87.88
15 US$8.33 US$124.88
25 US$7.86 US$196.56
50 US$7.40 US$370.00
100 US$6.94 US$693.75
250 US$6.48 US$1,618.75
500+ US$6.01 US$3,006.25+
Unit Cost : US$
Extended Cost : US$9.25
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQG2-P
Part Number

15020081209
Part Number (Old)

5020.081.209
Colour

Black
Thread Type

PG
Thread Size

9
Thread Length C (mm)

11.5
Body Length D (mm)

33.5
Material

PA6 Plastic
OD Outside Diameter (mm)

13
ΦI Inside Diameter (mm)

10
ΦB Max Outer Diameter (mm)

20.5
ΦB1 (mm)

21
Weight (kg|100)

0.7
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113184238

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen

Applications

  • Machine and Plant Constructions
  • Automation
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Electrical Installations

Certifications
