Flexa RQG2-M 5020.078.025 / 15020078025

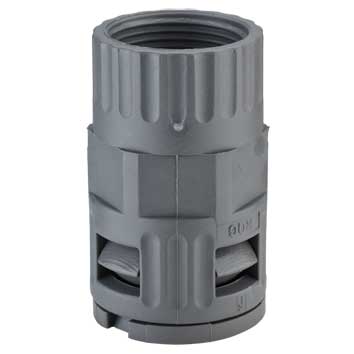

The Flexa RQG2-M 15020078025 (Old Part Number 5020.078.025) is described as a straight plastic conduit connector with metric M25 x 1.5 inner thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$13.63 | US$13.63 |
| 5 | US$13.22 | US$66.11 |
| 10 | US$12.95 | US$129.49 |
| 15 | US$12.27 | US$184.01 |
| 20 | US$11.59 | US$231.71 |
| 25 | US$10.90 | US$272.60 |
| 50 | US$10.22 | US$511.13 |
| 100 | US$9.54 | US$954.10 |
| 250+ | US$8.86 | US$2,214.88+ |
Unit Cost : US$
Extended Cost : US$13.63
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-M |
| Part Number | 15020078025 |
| Part Number (Old) | 5020.078.025 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M25 x 1.5 |
| Thread Length C (mm) | 13.5 |
| Body Length D (mm) | 54 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28.5 |
| ΦI Inside Diameter (mm) | 17 |
| ΦB Max Outer Diameter (mm) | 37 |
| ΦB1 (mm) | 30 |
| Weight (kg|100) | 2 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113218148 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
