Flexa RQG2-M 5020.078.016 / 15020078016

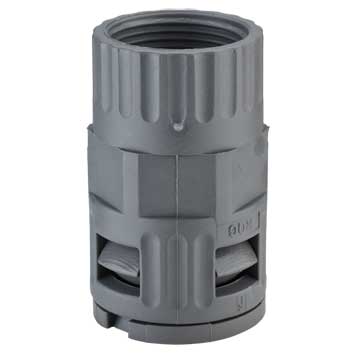

The Flexa RQG2-M 15020078016 (Old Part Number 5020.078.016) is described as a straight plastic conduit connector with metric M16 x 1.5 inner thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$9.55 | US$9.55 |
| 5 | US$9.26 | US$46.32 |
| 10 | US$9.07 | US$90.73 |
| 15 | US$8.60 | US$128.93 |
| 25 | US$8.12 | US$202.94 |
| 50 | US$7.64 | US$382.00 |
| 100 | US$7.16 | US$716.25 |
| 250 | US$6.69 | US$1,671.25 |
| 500+ | US$6.21 | US$3,103.75+ |
Unit Cost : US$
Extended Cost : US$9.55
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-M |
| Part Number | 15020078016 |
| Part Number (Old) | 5020.078.016 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M16 x 1.5 |
| Thread Length C (mm) | 9.5 |
| Body Length D (mm) | 39 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15.8 |
| ΦI Inside Diameter (mm) | 12.5 |
| ΦB Max Outer Diameter (mm) | 23 |
| ΦB1 (mm) | 21 |
| Weight (kg|100) | 0.8 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113218803 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
