Flexa RQG2-M 5020.078.014 / 15020078014

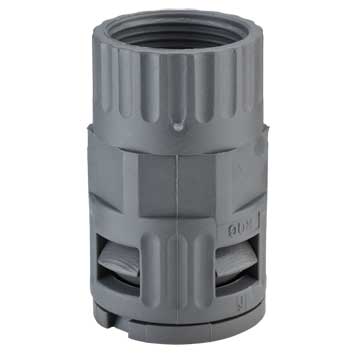

The Flexa RQG2-M 15020078014 (Old Part Number 5020.078.014) is described as a straight plastic conduit connector with metric M16 x 1.5 inner thread. It features the Flexaquick quick connect system with an integrated snap-in and release sleeve and built-in sealing.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$9.33 | US$9.33 |
| 5 | US$9.05 | US$45.25 |
| 10 | US$8.86 | US$88.64 |
| 15 | US$8.40 | US$125.96 |
| 25 | US$7.93 | US$198.26 |
| 50 | US$7.46 | US$373.20 |
| 100 | US$7.00 | US$699.75 |
| 250 | US$6.53 | US$1,632.75 |
| 500+ | US$6.06 | US$3,032.25+ |
Unit Cost : US$
Extended Cost : US$9.33
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-M |
| Part Number | 15020078014 |
| Part Number (Old) | 5020.078.014 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M16 x 1.5 |
| Thread Length C (mm) | 9.5 |
| Body Length D (mm) | 36.5 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 13 |
| ΦI Inside Diameter (mm) | 10 |
| ΦB Max Outer Diameter (mm) | 20 |
| ΦB1 (mm) | 21 |
| Weight (kg|100) | 0.6 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113218810 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
