5020.078.001 / 15020078001 RQG2-M M12 x 1.5 mm female thread Grey FLEXAquick® backshell connector for 10.0 mm OD conduit, IP68 sealing

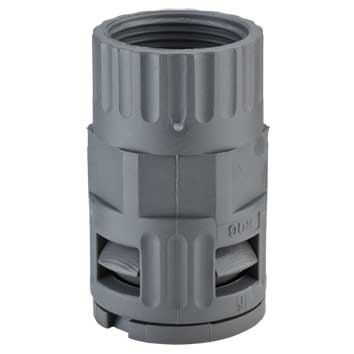

The FLEXAquick® RQG2-M 15020078001 (Old Part Number 5020.078.001) is a straight grey plastic conduit connector with metric M12 x 1.5 inner thread.
It features the FLEXAquick® quick-connect conduit fitting system with an integrated lock and release sleeve clip and built-in IP68 sealing.
Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. No tools required.
The RQG2-M is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.
Applications for the RQG2-M
It is designed to adapt and connect corrugated plastic conduits to devices with male threads of similar size, such as metric threaded cylindrical proximity or photoelectric sensors, and rigid conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$9.07 | US$9.07 |
| 5 | US$8.80 | US$43.99 |
| 10 | US$8.62 | US$86.17 |
| 15 | US$8.16 | US$122.45 |
| 25 | US$7.71 | US$192.74 |
| 50 | US$7.26 | US$362.80 |
| 100 | US$6.80 | US$680.25 |
| 250 | US$6.35 | US$1,587.25 |
| 500+ | US$5.90 | US$2,947.75+ |
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-M |
| Part Number | 15020078001 |
| Part Number (Old) | 5020.078.001 |
| Colour | Grey |
| Thread Type | Metric |
| Thread Size | M12 x 1.5 |
| Thread Length C (mm) | 9.5 |
| Body Length D (mm) | 36.5 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 10 |
| ΦI Inside Diameter (mm) | 7.5 |
| ΦB Max Outer Diameter (mm) | 17 |
| ΦB1 (mm) | 17 |
| Weight (kg|100) | 0.5 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113282415 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
