5112.015.220 / 15112015220 RQGKZP-M M20 x 1.5 mm FLEXAquick® straight metal thread strain relief connector, no insert, for 15.8 mm OD conduit

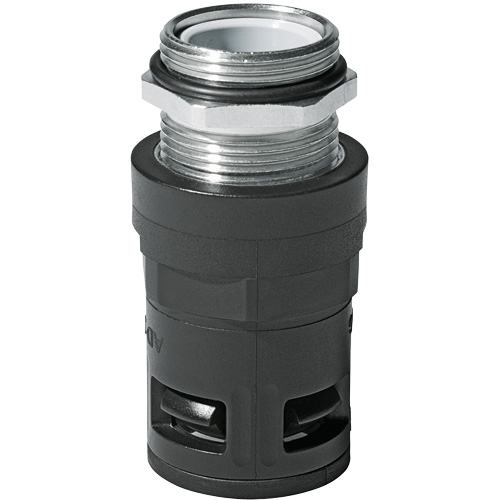

The Flexaquick RQGKZP-M 15112015220 (Old Part Number 5112.015.220) is a straight Black plastic conduit connector with metric M20 x 1.5 mm nickel-plated brass thread and integrated cable strain relief.
Thread length = 6.5 mm, Cable clamping range = no sealing insert included, allows for user customization. Included is a pre-mounted external O-ring.
It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$38.14 | US$38.14 |
| 5 | US$37.00 | US$184.98 |
| 10 | US$36.23 | US$362.33 |
| 15 | US$34.33 | US$514.89 |
| 25 | US$32.42 | US$810.48 |
| 50 | US$30.51 | US$1,525.60 |
| 100 | US$28.61 | US$2,860.50 |
| 250 | US$26.70 | US$6,674.50 |
| 500+ | US$24.79 | US$12,395.50+ |
Unit Cost : US$
Extended Cost : US$38.14
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGKZP-M |
| Part Number | 15112015220 |
| Part Number (Old) | 5112.015.220 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M20 x 1. 5 |
| Thread Length C (mm) | 6. 5 |
| Body Length D (mm) | 57. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 15. 8 |
| ΦI Inside Diameter (mm) | 11. 0 |
| ΦB Max Outer Diameter (mm) | 27. 0 |
| Weight (kg|100) | 3.5 |
| IP Rating | IP68 | 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113216434 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- good for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
- optimal strain relief and sealing of cables at the same time
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
