Flexa RQGKZED-M 5133.028.225 / 15133028225

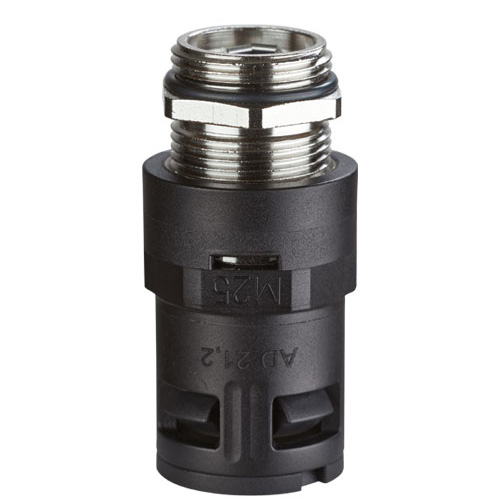

The Flexa RQGKZED-M 15133028225 (Old Part Number 5133.028.225) is described as a straight plastic conduit connector with metric M25 x 1.
5 nickel-plated brass thread and integrated cable strain relief. EMC shielding is provided through a bonding contact spring. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. It comes with a pre-mounted external O-ring. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$53.82 | US$53.82 |
| 5 | US$48.44 | US$242.19 |
| 10 | US$43.06 | US$430.56 |
| 20 | US$40.37 | US$807.30 |
| 50 | US$37.67 | US$1,883.70 |
| 100+ | US$34.98 | US$3,498.30+ |
Unit Cost : US$
Extended Cost : US$53.82
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGKZED-M |
| Part Number | 15133028225 |
| Part Number (Old) | 5133.028.225 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M25 x 1. 5 |
| Thread Length C (mm) | 7. 0 |
| Body Length D (mm) | 71. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28. 5 |
| ΦI Inside Diameter (mm) | 16. 0 |
| ΦB Max Outer Diameter (mm) | 42. 8 |
| Weight (kg|100) | 8.6 |
| IP Rating | IP68 | 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Gripping Range (mm) | 8. 0-14. 0 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113307903 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- good for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
- optimal strain relief and sealing of cables at the same time
- bonding for EMC shielding
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
