5111.028.225 / 15111028225 RQGKZE-M M25 x 1.5 mm FLEXAquick® straight metal thread bonding strain relief connector, 11.0 – 16.0 mm grip, for 28.5 mm OD conduit

Product Name:
5111.028.225 / 15111028225 RQGKZE-M M25 x 1.5 mm FLEXAquick® straight metal thread bonding strain relief connector, 11.0 – 16.0 mm grip, for 28.5 mm OD conduit

Mfr. Part # 15111028225 Categories IBIS FLEXAquick Fitting 25 Pack, Metal Thread Strain Relief, Plastic Body Fittings, RQGKZE-M

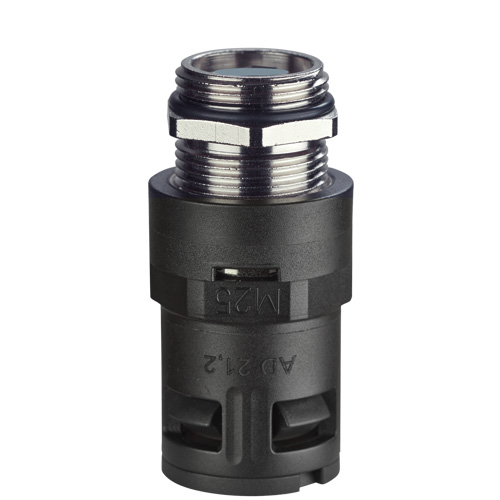

The Flexa RQGKZE-M 15111028225 (Old Part Number 5111.028.225) is a straight Black plastic conduit connector with metric M25 x 1.5 mm nickel-plated brass thread and integrated bonding cable strain relief.

EMC shielding is provided through the bonding nickel-plated brass strain relief.

Thread length = 7.0 mm, Cable clamping grip range = 11.0 – 16.0 mm. Included is a pre-mounted external O-ring.

The RQGKZE-M features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for Quick “on” assembly, or Quick “off” disassembly. NO tools required!

Use with all fine or coarse corrugation plastic conduits of matching outside diameter (OD).

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1-2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$55.47	US$55.47
5	US$53.81	US$269.03
10	US$52.70	US$526.97
15	US$49.92	US$748.85
20	US$47.15	US$942.99
25	US$44.38	US$1,109.40
50	US$41.60	US$2,080.13
100	US$38.83	US$3,882.90
250+	US$36.06	US$9,013.88+

Unit Cost : US$

Extended Cost : US$55.47

Specifications

Package Size	25 pcs
Product Type	Plastic Body Fitting
Brand	Flexa
Family	RQGKZE-M
Part Number	15111028225
Part Number (Old)	5111.028.225
Colour	Black
Thread Type	Metric
Thread Size	M25 x 1. 5
Thread Length C (mm)	7. 0
Body Length D (mm)	71. 0
Material	PA6 Plastic
OD Outside Diameter (mm)	28. 5
ΦI Inside Diameter (mm)	16. 0
ΦB Max Outer Diameter (mm)	42. 8
Weight (kg\|100)	6.7
IP Rating	IP68 \| 69K
Low Temperature Rating (°C)	-40
High Temperature Rating (°C)	120
Gripping Range (mm)	11. 0-16. 0
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113196217
