5105.028.225 / 15105028225 RQBK90-M M25 x 1.5 mm FLEXAquick® 90 degree bend elbow metal thread connector for 28.5 mm OD conduit

Product Name:
5105.028.225 / 15105028225 RQBK90-M M25 x 1.5 mm FLEXAquick® 90 degree bend elbow metal thread connector for 28.5 mm OD conduit

Flexa Logo
Mfr. Part # 15105028225 Categories , , ,

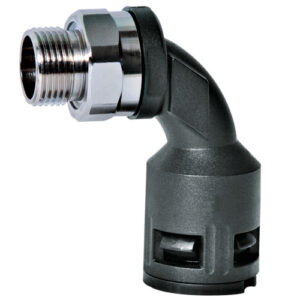

The Flexa RQBK90-M 15105028225 (Old Part Number 5105.028.225) is a Black plastic 90° bend elbow conduit connector with metric M25 x 1.5 nickel-plated brass thread

Included with the fitting are both a Nitrile O-ring (OR-M) and a green Centellen flat sealing washer (FRH-M) for IP68/69K thread sealing.

The RQBK90-M features the FLEXAquick® quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

Use the RQBK90-M with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.





In Stock: 20
Stock: 20 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1

20 in stock

Quantity Unit Price Ext. Price
1 US$32.67 US$32.67
5 US$31.69 US$158.45
10 US$31.04 US$310.37
15 US$29.40 US$441.05
20 US$27.77 US$555.39
25 US$26.14 US$653.40
50 US$24.50 US$1,225.13
100 US$22.87 US$2,286.90
250+ US$21.24 US$5,308.88+
Unit Cost : US$
Extended Cost : US$32.67
Add to Quote

Specifications

Package Size

25 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQBK90-M
Part Number

15105028225
Part Number (Old)

5105.028.225
Colour

Black
Thread Type

Metric
Thread Size

M25 x 1. 5
Thread Length C (mm)

13. 0
Body Length E (mm)

90. 0
Body Length F (mm)

64. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

28. 5
ΦI Inside Diameter (mm)

17. 0
ΦB Max Outer Diameter (mm)

37. 0
Weight (kg|100)

4.8
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113193728

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
