5131.034.232 / 15131034232 RQBK45DR-M M32 x 1.5 mm swivel thread FLEXAquick 45° degree bend elbow connector for 34.5 mm OD conduit

Product Name:
5131.034.232 / 15131034232 RQBK45DR-M M32 x 1.5 mm swivel thread FLEXAquick 45° degree bend elbow connector for 34.5 mm OD conduit

Flexa Logo
Mfr. Part # 15131034232 Categories , , ,

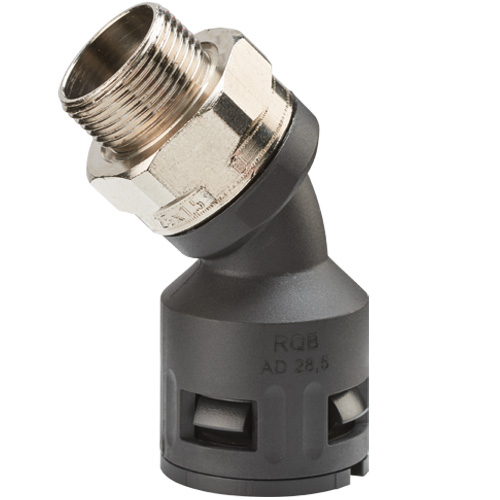

The Flexa RQBK45DR-M 15131034232 (Old Part Number 5131.034.232) is a Black plastic 45° bend elbow conduit connector with swivelling metric M32 x 1.5 mm outer thread.

Highlights:

It features the Flexaquick quick connect system with an integrated lock & release sleeve and built-in IP68 sealing. Installs in seconds for “Quick-connect on” assembly, or “Quick-disconnect off” disassembly. NO tools required!

Use the RQBK45DR-M conduit connector with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$49.12 US$49.12
5 US$44.21 US$221.04
10 US$39.30 US$392.96
20 US$36.84 US$736.80
50 US$34.38 US$1,719.20
100+ US$31.93 US$3,192.80+
Unit Cost : US$
Extended Cost : US$49.12
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQBK45DR-M
Part Number

15131034232
Part Number (Old)

5131.034.232
Colour

Black
Thread Type

Metric
Thread Size

M32 x 1. 5
Thread Length C (mm)

14. 0
Body Length E (mm)

74. 0
Body Length F (mm)

92. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

34. 5
ΦI Inside Diameter (mm)

24. 5
ΦB Max Outer Diameter (mm)

44. 0
Weight (kg|100)

16.5
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113304858

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations

Certifications
