Flexa RQBK45DR-M 5131.028.225 / 15131028225

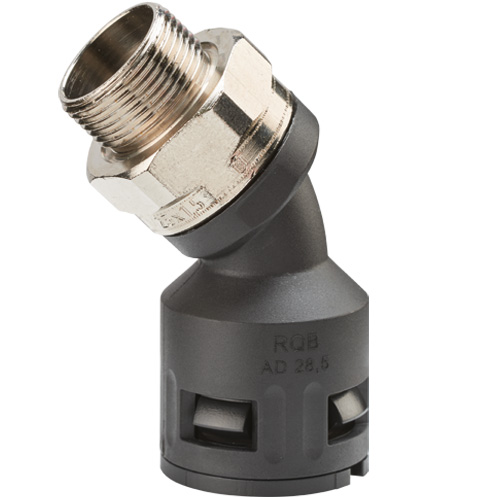

The Flexa RQBK45DR-M 15131028225 (Old Part Number 5131.028.225) is described as a plastic conduit connector, quick-type, bend 45°, with a swivelling metric M25 x 1.
5 nickel-plated brass outer thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. Included with the fitting are an O-ring and a flat sealing washer.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$40.95 | US$40.95 |
| 5 | US$39.72 | US$198.61 |
| 10 | US$38.90 | US$389.03 |
| 15 | US$36.86 | US$552.83 |
| 20 | US$34.81 | US$696.15 |
| 25 | US$32.76 | US$819.00 |
| 50 | US$30.71 | US$1,535.63 |
| 100 | US$28.67 | US$2,866.50 |
| 250+ | US$26.62 | US$6,654.38+ |
Unit Cost : US$
Extended Cost : US$40.95
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQBK45DR-M |
| Part Number | 15131028225 |
| Part Number (Old) | 5131.028.225 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M25 x 1. 5 |
| Thread Length C (mm) | 13. 0 |
| Body Length E (mm) | 66. 0 |
| Body Length F (mm) | 87. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28. 5 |
| ΦI Inside Diameter (mm) | 17. 0 |
| ΦB Max Outer Diameter (mm) | 37. 0 |
| Weight (kg|100) | 11.1 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113304841 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
