5020.087.229 / 15020087229 FLEXAquick® RQBK45-P PG29 black 45° elbow metal thread connector for 34.5 mm OD conduit, IP68 / IP69K

  • FLEXAquick® RQBK45-P PG29 black 45° elbow metal thread connector for 34.5 mm OD conduit, IP68 / IP69K

Product Name:
5020.087.229 / 15020087229 FLEXAquick® RQBK45-P PG29 black 45° elbow metal thread connector for 34.5 mm OD conduit, IP68 / IP69K

Flexa Logo
Mfr. Part # 15020087229 Categories , , ,

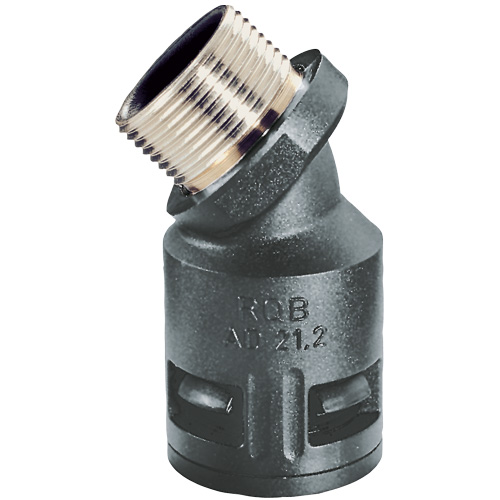

The FLEXAquick® RQBK45-P 15020087229 (Old Part Number 5020.087.229) is a black plastic 45° elbow conduit connector with PG29 nickel-plated brass outer thread.

The RQBK45-P uses the FLEXAquick® quick-connect system with an integrated lock and release sleeve and built-in IP68 / IP69K sealing. It installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly, with no tools required for quick conduit connection or disconnection.

The 45° elbow design provides a more gradual conduit direction change than a 90° elbow, helping where a softer angled conduit entry is needed.

Use the RQBK45-P with fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

Included with the fitting are both a Nitrile O-ring (OR-P) and a green Centellen flat sealing washer (FRH-P) or IP68 / IP69K thread sealing.



In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$39.30 US$39.30
5 US$35.37 US$176.85
10 US$31.44 US$314.40
20 US$29.48 US$589.50
50 US$27.51 US$1,375.50
100+ US$25.55 US$2,554.50+
Unit Cost : US$
Extended Cost : US$39.3
Add to Quote

Specifications

Package Size

10 pcs
Product Type

Plastic Body Fitting
Brand

Flexa
Family

RQBK45-P
Part Number

15020087229
Part Number (Old)

5020.087.229
Colour

Black
Thread Type

PG
Thread Size

29
Thread Length C (mm)

14. 0
Body Length E (mm)

73. 5
Body Length F (mm)

77. 0
Material

PA6 Plastic
OD Outside Diameter (mm)

34. 5
ΦI Inside Diameter (mm)

29. 0
ΦB Max Outer Diameter (mm)

47. 0
Weight (kg|100)

7.7
IP Rating

IP 68 | IP 69K
Low Temperature Rating (°C)

-40
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113185839

Data Sheet

Properties

  • resistant against oil and benzine
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • fit for high mechanical stress
  • impact-resistant
  • tolerates high torque thread tightening

Applications

  • Machine and Plant Constructions
  • Automotive
  • Railway Industry
  • Shipbuilding
  • Automation
  • Electrical Installations
