Flexa RQGK2-P 5020.075.236 / 15020075236

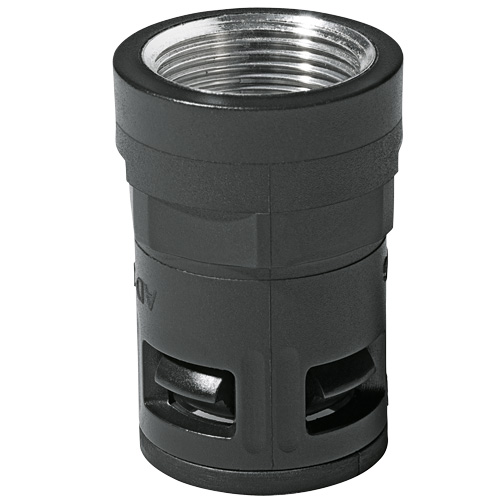

The Flexa RQGK2-P 15020075236 (Old Part Number 5020.075.236) is described as a straight plastic conduit connector with PG 36 nickel-plated brass inner thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$57.89 | US$57.89 |
| 5 | US$52.10 | US$260.51 |
| 10 | US$46.31 | US$463.12 |
| 20 | US$43.42 | US$868.35 |
| 50 | US$40.52 | US$2,026.15 |
| 100+ | US$37.63 | US$3,762.85+ |
Unit Cost : US$
Extended Cost : US$57.89
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-P |
| Part Number | 15020075236 |
| Part Number (Old) | 5020.075.236 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 36 |
| Thread Length C (mm) | 15. 5 |
| Body Length D (mm) | 85. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 42. 5 |
| ΦI Inside Diameter (mm) | 36. 0 |
| ΦB Max Outer Diameter (mm) | 59. 0 |
| Weight (kg|100) | 10.3 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113190840 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
