Flexa RQGK2-P 5020.075.221 / 15020075221

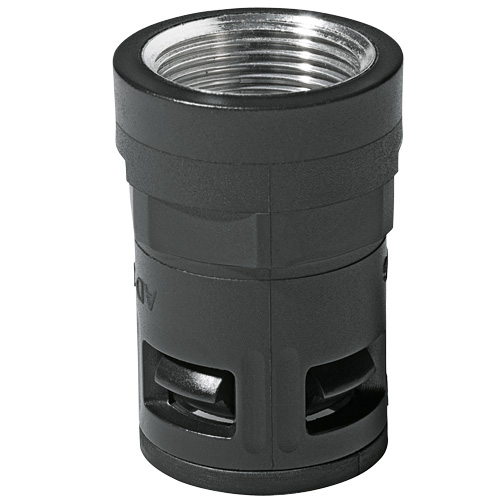

The Flexa RQGK2-P 15020075221 (Old Part Number 5020.075.221) is described as a straight plastic conduit connector with PG 21 nickel-plated brass inner thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$30.35 | US$30.35 |
| 5 | US$29.44 | US$147.20 |
| 10 | US$28.83 | US$288.33 |
| 15 | US$27.32 | US$409.73 |
| 20 | US$25.80 | US$515.95 |
| 25 | US$24.28 | US$607.00 |
| 50 | US$22.76 | US$1,138.13 |
| 100 | US$21.25 | US$2,124.50 |
| 250+ | US$19.73 | US$4,931.88+ |
Unit Cost : US$
Extended Cost : US$30.35
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-P |
| Part Number | 15020075221 |
| Part Number (Old) | 5020.075.221 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 21 |
| Thread Length C (mm) | 13. 0 |
| Body Length D (mm) | 48. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 28. 5 |
| ΦI Inside Diameter (mm) | 18. 5 |
| ΦB Max Outer Diameter (mm) | 41. 0 |
| Weight (kg|100) | 4.4 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113181039 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
