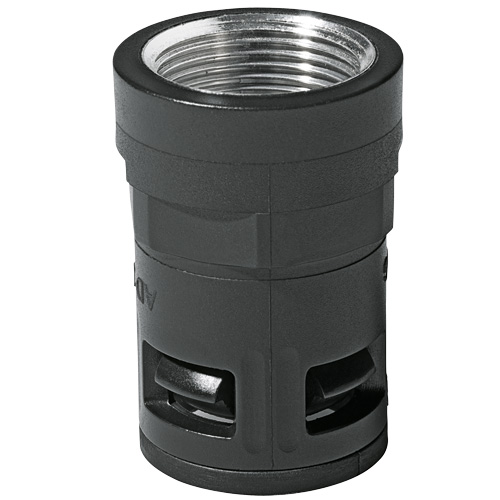

Flexa RQGK2-P 5020.075.213 / 15020075213
The Flexa RQGK2-P 15020075213 (Old Part Number 5020.075.213) is described as a straight plastic conduit connector with PG 13.
5 nickel-plated brass inner thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$16.66 | US$16.66 |
| 5 | US$16.16 | US$80.80 |
| 10 | US$15.83 | US$158.27 |
| 15 | US$14.99 | US$224.91 |
| 25 | US$14.16 | US$354.03 |
| 50 | US$13.33 | US$666.40 |
| 100 | US$12.50 | US$1,249.50 |
| 250 | US$11.66 | US$2,915.50 |
| 500+ | US$10.83 | US$5,414.50+ |
Unit Cost : US$
Extended Cost : US$16.66
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-P |
| Part Number | 15020075213 |
| Part Number (Old) | 5020.075.213 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 13. 5 |
| Thread Length C (mm) | 9. 5 |
| Body Length D (mm) | 45. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 18. 5 |
| ΦI Inside Diameter (mm) | 12. 5 |
| ΦB Max Outer Diameter (mm) | 29. 0 |
| Weight (kg|100) | 2.6 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113192608 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
