5020.075.209 / 15020075209 RQGK2-P PG9 female metal thread Black FLEXAquick® conduit adapter backshell for 13.0 mm OD conduit, IP68

Product Name:
5020.075.209 / 15020075209 RQGK2-P PG9 female metal thread Black FLEXAquick® conduit adapter backshell for 13.0 mm OD conduit, IP68

Mfr. Part # 15020075209 Categories FLEXAquick® Metal Female Inner Thread Fittings, FLEXAquick® RQGK2-P PG Metal Female Thread Fitting, IBIS FLEXAquick Fitting 50 Pack, Plastic Conduit Fittings

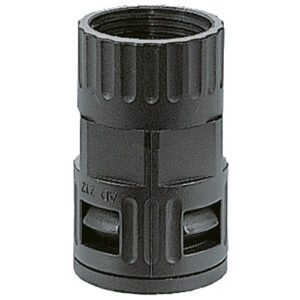

The Flexa RQGK2-P 15020075209 (Old Part Number 5020.075.209) is a straight Black plastic conduit backshell adapter connector with metal PG9 female inner thread.

It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.

This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!

The RQGK2-P is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1 – 2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$12.08	US$12.08
5	US$11.72	US$58.59
10	US$11.48	US$114.76
15	US$10.87	US$163.08
25	US$10.27	US$256.70
50	US$9.66	US$483.20
100	US$9.06	US$906.00
250	US$8.46	US$2,114.00
500+	US$7.85	US$3,926.00+

Unit Cost : US$

Extended Cost : US$12.08

Specifications

Package Size	50 pcs
Product Type	Plastic Body Fitting
Brand	Flexa
Family	RQGK2-P
Part Number	15020075209
Part Number (Old)	5020.075.209
Colour	Black
Thread Type	PG
Thread Size	9
Thread Length C (mm)	9. 5
Body Length D (mm)	41. 0
Material	PA6 Plastic
OD Outside Diameter (mm)	13. 0
ΦI Inside Diameter (mm)	8. 5
ΦB Max Outer Diameter (mm)	24. 0
Weight (kg\|100)	1.5
IP Rating	IP 68 \| IP 69K
Low Temperature Rating (°C)	-40
High Temperature Rating (°C)	120
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113181008
