Flexa RQGK2-P 5020.075.207 / 15020075207

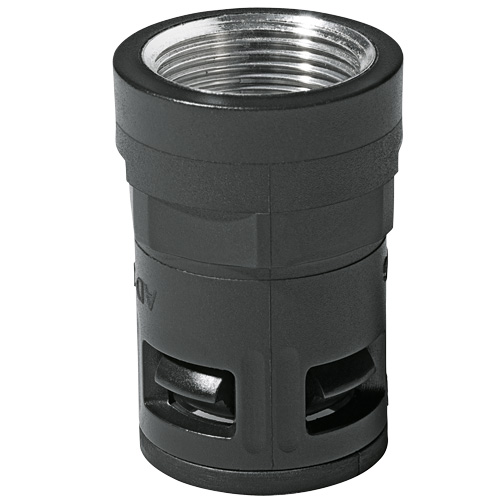

The Flexa RQGK2-P 15020075207 (Old Part Number 5020.075.207) is described as a straight plastic conduit connector with PG 7 nickel-plated brass inner thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$11.96 | US$11.96 |
| 5 | US$11.60 | US$58.01 |
| 10 | US$11.36 | US$113.62 |
| 15 | US$10.76 | US$161.46 |
| 25 | US$10.17 | US$254.15 |
| 50 | US$9.57 | US$478.40 |
| 100 | US$8.97 | US$897.00 |
| 250 | US$8.37 | US$2,093.00 |
| 500+ | US$7.77 | US$3,887.00+ |
Unit Cost : US$
Extended Cost : US$11.96
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-P |
| Part Number | 15020075207 |
| Part Number (Old) | 5020.075.207 |
| Colour | Black |
| Thread Type | PG |
| Thread Size | 7 |
| Thread Length C (mm) | 8. 0 |
| Body Length D (mm) | 38. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 10. 0 |
| ΦI Inside Diameter (mm) | 7. 0 |
| ΦB Max Outer Diameter (mm) | 20. 0 |
| Weight (kg|100) | 0.9 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113190826 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
