Flexa RQGK2-M 5108.054.263 / 15108054263

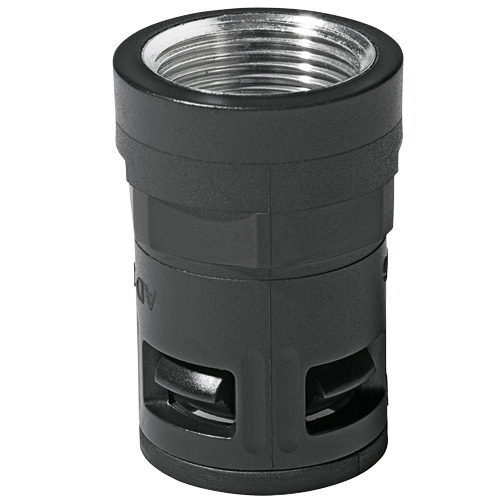

The Flexa RQGK2-M 15108054263 (Old Part Number 5108.054.263) is described as a straight plastic conduit connector with metric M63 x 1.
5 nickel-plated brass inner thread. It features the Flexaquick quick connect system with an integrated snap-in & release sleeve and built-in sealing. EN 45545-2 (HL3).
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$81.71 | US$81.71 |
| 5 | US$73.54 | US$367.70 |
| 10 | US$65.37 | US$653.68 |
| 20 | US$61.28 | US$1,225.65 |
| 50 | US$57.20 | US$2,859.85 |
| 100+ | US$53.11 | US$5,311.15+ |
Unit Cost : US$
Extended Cost : US$81.71
Specifications
| Package Size | 10 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-M |
| Part Number | 15108054263 |
| Part Number (Old) | 5108.054.263 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M63 x 1. 5 |
| Thread Length C (mm) | 17. 0 |
| Body Length D (mm) | 95. 5 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 54. 5 |
| ΦI Inside Diameter (mm) | 47. 5 |
| ΦB Max Outer Diameter (mm) | 79. 0 |
| Weight (kg|100) | 18.6 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113215970 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
