5108.021.220 / 15108021220 RQGK2-M M20 x 1.5 mm female metal thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68
The Flexa RQGK2-M 15108021220 (Old Part Number 5108.021.220) is a straight Black plastic conduit backshell adapter connector with metal metric M20 x 1.5 mm female inner thread.
It features the Flexaquick quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.
Installs in seconds for “Quick-connect on” fitting assembly or “Quick-disconnect off” fitting disassembly. NO tools required!
The RQGK2-M is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$16.22 | US$16.22 |
| 5 | US$15.73 | US$78.67 |
| 10 | US$15.41 | US$154.09 |
| 15 | US$14.60 | US$218.97 |
| 20 | US$13.79 | US$275.74 |
| 25 | US$12.98 | US$324.40 |
| 50 | US$12.17 | US$608.25 |
| 100 | US$11.35 | US$1,135.40 |
| 250+ | US$10.54 | US$2,635.75+ |
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQGK2-M |
| Part Number | 15108021220 |
| Part Number (Old) | 5108.021.220 |
| Colour | Black |
| Thread Type | Metric |
| Thread Size | M20 x 1. 5 |
| Thread Length C (mm) | 11. 0 |
| Body Length D (mm) | 50. 0 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 21. 2 |
| ΦI Inside Diameter (mm) | 15. 0 |
| ΦB Max Outer Diameter (mm) | 33. 0 |
| Weight (kg|100) | 4.8 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113192646 |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- tolerates high torque thread tightening
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
Certifications
Related Products
You may also like…
-

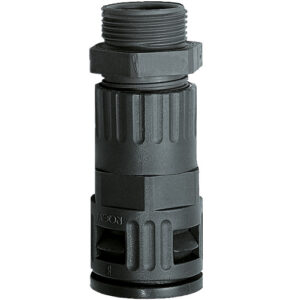

5020.031.222 / 15020031222 RQGZ-M M20 x 1.5 mm FLEXAquick® black straight connector, 8 – 11 mm grip strain relief, for 21.2 mm OD conduit, IP68 sealing
Add to cartAdd to Quote -
5020.037.220 / 15020037220 RQG-M M20 x 1.5 mm Metric FLEXAquick® Black straight connector for 21.2 mm OD conduit, IP68 sealing
Add to cartAdd to Quote -

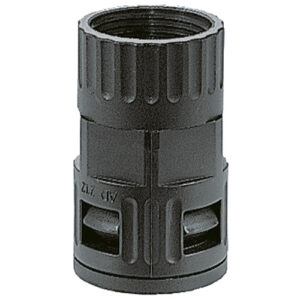

5020.078.220 / 15020078220 RQG2-M M20 x 1.5 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing
