Flexa SPR-VA 1010.801.016 / 11010801016 16.0 x 19.0 mm ultra-flexible, stretch-resistant, stainless steel conduit

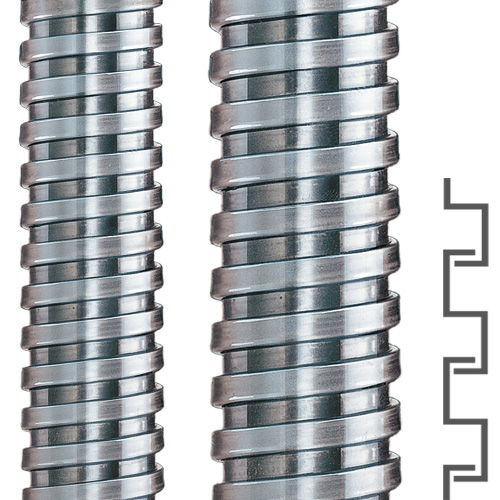

The Flexa SPR-VA 11010801016 (Old Part Number 1010.801.016) is a 16.0 x 19.0 mm ultra-flexible, stretch-resistant, stainless-steel conduit with a durable square fold, S-profile interlocking construction.
A versatile conduit solution for protecting wires, cables, pneumatic hoses, and fibre optic sensor bundles.
Applications for SPR-VA conduits include: vac-sealers, hot-wrap and thermo-forming machines, packaging and labelling machines, heat and exhaust ventilation control, heater and furnace control modules, cobot & robot wiring protection, and security sensor wiring.
For Metric threaded installations, consider the US-M, metric threaded straight conduit fittings for terminating the conduit ends.

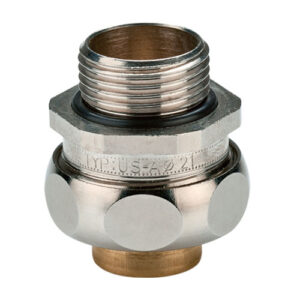

For PG threaded installations, explore the US-P, PG threaded straight conduit fittings for terminating the conduit ends.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,391.74 | US$1,391.74 |
| 2 | US$1,322.15 | US$2,644.31 |
| 5 | US$1,252.57 | US$6,262.83 |
| 10+ | US$1,182.98 | US$11,829.79+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-VA |
| Part Number | 11010801016 |
| Part Number (Old) | 1010.801.016 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 19 |
| ID Inside Diameter (mm) | 16 |
| Static Bend Radius (mm) | 35 |
| Dynamic Bend Radius (mm) | 92 |
| Weight (kg|m) | 0.185 |
| Material | Stainless Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -200 |
| High Temperature Rating (°C) | 600 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113116147 |
Data Sheet
Properties
- highly flexible
- stretch resistant
- lateral compression resistant
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
- Ex-Area acc. to EN 1127-1
Certifications
