Flexa FLEXAgraff-VA 1080.801.018 / 11080801018

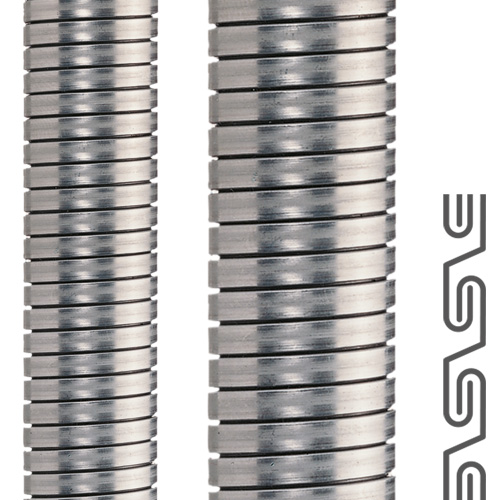

The Flexa FLEXAgraff-VA 11080801018 (Old Part Number 1080.801.018) is an 18.0 x 21.0 mm bend-limiting, stretch resistant, stainless-steel conduit with a rugged double interlocked construction for protecting wires, cables, pneumatic hoses, and fiber optic bundles. It provides high environmental stability, with no-twist flexibility and durable mechanical protection.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$3,480.71 | US$3,480.71 |
| 2 | US$3,306.67 | US$6,613.35 |
| 5 | US$3,132.64 | US$15,663.20 |
| 10+ | US$2,958.60 | US$29,586.04+ |
Unit Cost : US$
Extended Cost : US$3480.71
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | FLEXAgraff-VA |
| Part Number | 11080801018 |
| Part Number (Old) | 1080.801.018 |
| Colour | Metallic |
| OD Outside Diameter (mm) | 21 |
| ID Inside Diameter (mm) | 18 |
| Static Bend Radius (mm) | 70 |
| Dynamic Bend Radius (mm) | 175 |
| Weight (kg|m) | 0.32 |
| Material | Galvanized Steel |
| IP Rating | IP40 |
| Low Temperature Rating (°C) | -200 |
| High Temperature Rating (°C) | 600 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113186171 |
Data Sheet
Properties
- very flexible
- stretch resistant
- lateral compression resistant
Applications
- Machine and Plant Constructions
- Automotive
- Railway Industry
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
- Ex-Area acc. to EN 1127-1
Certifications
