Flexa SPR-PVC-AS 2010.111.015 / 12010111015

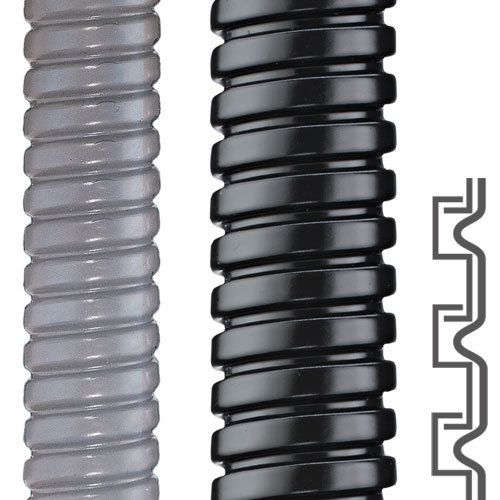

The Flexa SPR-PVC-AS 12010111015 (Old Part Number 2010.111.015) is a 15.0 x 19.0 mm highly flexible liquidtight galvanized steel conduit featuring a Grey PVC protective jacket.
The stretch-resistant, durable interlocked construction, and PVC sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles.
Applications:
The SPR-PVC-AS conduits are very versatile and a good solution for a wide range of wiring applications across many types of machinery, conveyors, robotics, automation equipment, and CCTV security camera wiring protection. Suitable for applications indoors and outdoors.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$638.25 | US$638.25 |
| 2 | US$606.34 | US$1,212.68 |
| 5 | US$574.43 | US$2,872.13 |
| 10+ | US$542.51 | US$5,425.13+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-PVC-AS |
| Part Number | 12010111015 |
| Part Number (Old) | 2010.111.015 |
| Colour | Grey |
| OD Outside Diameter (mm) | 19 |
| ID Inside Diameter (mm) | 15 |
| Static Bend Radius (mm) | 50 |
| Dynamic Bend Radius (mm) | 120 |
| Weight (kg|m) | 0.19 |
| Material | Galvanized Steel, Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113129970 |
Data Sheet
Properties
- weatherproof
- watertight
- widely resistant to seawater, acids, oils
- free of silicone and cadmium
- very flexible
- stretch-resistant
- compression-resistant
- DIN 49012, structure shape I, approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
- Fiber optic sensor cables
Certifications
