Flexa SPR-PVC-AS 2010.111.013 / 12010111013

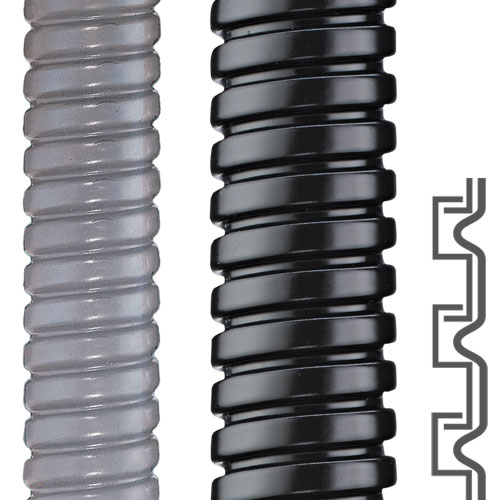

The Flexa SPR-PVC-AS 12010111013 (Old Part Number 2010.111.013) is a 13.0 x 17.0 mm very flexible liquidtight galvanized steel conduit with a grey PVC protective jacket. The stretch-resistant, durable interlocked construction, and PVC sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. The SPR-PVC-AS is a very versatile conduit usable in a variety of wiring applications on all types of machinery, conveyors, robotics, and automation equipment. Good indoors and outdoors.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$562.00 | US$562.00 |
| 2 | US$533.90 | US$1,067.80 |
| 5 | US$505.80 | US$2,529.00 |
| 10+ | US$477.70 | US$4,777.00+ |
Unit Cost : US$
Extended Cost : US$562
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-PVC-AS |
| Part Number | 12010111013 |
| Part Number (Old) | 2010.111.013 |
| Colour | Grey |
| OD Outside Diameter (mm) | 17 |
| ID Inside Diameter (mm) | 13 |
| Static Bend Radius (mm) | 45 |
| Dynamic Bend Radius (mm) | 115 |
| Weight (kg|m) | 0.17 |
| Material | Galvanized Steel, Jacket: PVC |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -25 |
| High Temperature Rating (°C) | 90 |
| Extended Temperature (°C) | 100 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113129963 |
Data Sheet
Properties
- weatherproof
- watertight
- widely resistant to seawater, acids, oils
- free of silicone and cadmium
- very flexible
- stretch-resistant
- compression-resistant
- DIN 49012, structure shape I, approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Shipbuilding
- Automation
- Electrical Installations
- Sensor Technology
Certifications
