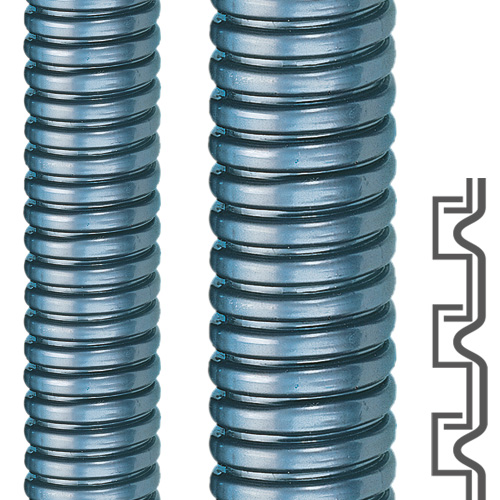

2210.711.022 / 12210711022 Flexa SPR-PU-AS 22.0 x 27.0 mm liquidtight flexible galvanized steel conduit, with blue polyurethane (PU) protective jacket
The Flexa SPR-PU-AS 12210711022 (Old Part Number 2210.711.022) is a 22.0 x 27.0 mm liquidtight flexible galvanized steel conduit with a blue polyurethane (PU) protective jacket.
The stretch-resistant, durable interlocked construction, and PU sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles.
Good for wiring applications on all types of machinery, conveyors, robotics, and automation equipment. It’s low temperature performance and microbe resistance make this conduit usable indoors and outdoors.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3-4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$1,430.68 | US$1,430.68 |
| 2 | US$1,359.15 | US$2,718.29 |
| 5 | US$1,287.61 | US$6,438.06 |
| 10+ | US$1,216.08 | US$12,160.78+ |
Unit Cost : US$
Extended Cost : US$1430.68
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-PU-AS |
| Part Number | 12210711022 |
| Part Number (Old) | 2210.711.022 |
| Colour | Blue |
| OD Outside Diameter (mm) | 27 |
| ID Inside Diameter (mm) | 22 |
| Static Bend Radius (mm) | 60 |
| Dynamic Bend Radius (mm) | 150 |
| Weight (kg|m) | 0.32 |
| Material | Galvanized Steel, Jacket: PU |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 100 |
| Extended Temperature (°C) | 130 |
| Flammability Rating (UL 94) | V2 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113137043 |
Data Sheet
Properties
- V2 according to UL 94
- oil, benzine, and grease resistant
- widely resistant to solvents and acids
- free of halogen, silicone, cadmium
- high tenacity and abrasion resistance
- outstanding performance at low temperatures
- very flexible
- microbe resistant
- DIN 49012, structure shape I, approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
Certifications
