Flexa SPR-PA 2013.202.007 / 12013202007

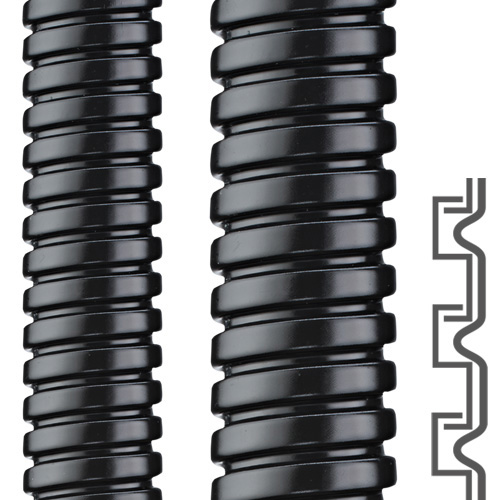

The Flexa SPR-PA 12013202007 (Old Part Number 2013.202.007) is a 7.0 x 10.0 mm flexible liquidtight galvanized steel conduit with a black polyamide (PA) protective jacket. The stretch-resistant, durable interlocked construction, and PA sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. The SPR-PA is UV resistant, and is free of halogen, silicone, and cadmium. Good for wiring applications on all types of machinery, conveyors, robotics, and automation equipment. Use indoors and outdoors.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 3-4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$891.58 | US$891.58 |
| 2 | US$847.00 | US$1,694.00 |
| 5 | US$802.42 | US$4,012.11 |
| 10+ | US$757.84 | US$7,578.43+ |
Unit Cost : US$
Extended Cost : US$891.58
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | SPR-PA |
| Part Number | 12013202007 |
| Part Number (Old) | 2013.202.007 |
| Colour | Black |
| OD Outside Diameter (mm) | 10 |
| ID Inside Diameter (mm) | 7 |
| Static Bend Radius (mm) | 25 |
| Dynamic Bend Radius (mm) | 65 |
| Weight (kg|m) | 0.085 |
| Material | Galvanized Steel, Jacket: PA6 |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 120 |
| Extended Temperature (°C) | 150 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113179074 |
Data Sheet
Properties
- weatherproof
- water resistant
Applications
- Shipbuilding
- Automation
- Electrical Installations
- Machinery and Equipment
- Automotive
- Railway
Certifications
