Flexa FLEXAgraff-SI-ASF 2140.801.016 / 12140801016

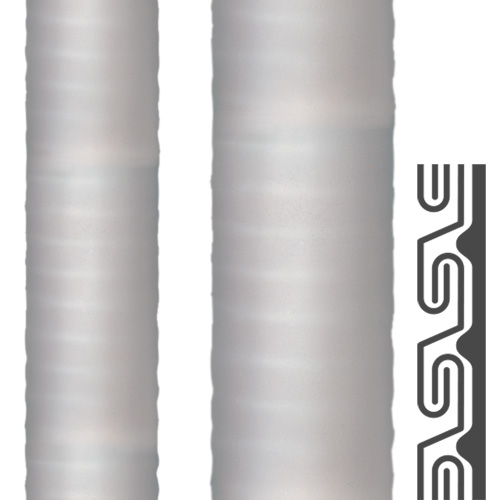

The Flexa FLEXAgraff-SI-ASF 12140801016 (Old Part Number 2140.801.016) is a 16.0 x 21.0 mm liquidtight galvanized steel conduit that features a grey silicone (SI), non-toxic, halogen free, flame-retardant protective jacket. The bend-limiting, heavy-duty interlocked construction, and SI sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, and fiber optic bundles. The FLEXAgraff-SI-ASF was especially formulated for wiring applications involving pharmaceutical and medical apparatus, medical scoping, and sensor technologies. Use indoors and outdoors. Good stability with ozone, ultra-violet (UV) radiation, and atmospheric influences.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$3,193.30 | US$3,193.30 |
| 2 | US$3,033.64 | US$6,067.27 |
| 5 | US$2,873.97 | US$14,369.85 |
| 10+ | US$2,714.31 | US$27,143.05+ |
Specifications
| Package Size | 50m (164 ft) per roll |
|---|---|
| Product Type | Metal Conduit |
| Brand | Flexa |
| Family | FLEXAgraff-SI-ASF |
| Part Number | 12140801016 |
| Part Number (Old) | 2140.801.016 |
| Colour | Grey |
| OD Outside Diameter (mm) | 21 |
| ID Inside Diameter (mm) | 16 |
| Static Bend Radius (mm) | 70 |
| Dynamic Bend Radius (mm) | 175 |
| Weight (kg|m) | 0.37 |
| Material | Galvanized Steel, Jacket: SI |
| IP Rating | IP68 |
| Low Temperature Rating (°C) | -50 |
| High Temperature Rating (°C) | 180 |
| Customs Tariff Number | 83071000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113136381 |
Data Sheet
Properties
- high tensile and torsional strength
- good electrical insulation
- very good resistance against ozone, ultra-violet radiation and atmospheric influences
- no untwisting of the conduit
- very flexible
- high shielding factor
- low flammability
- free of halogen
- no appearance of toxic and corrosive fire gases
- high temperature resistant
- approved acc. to DIN EN IEC 61386-23
Applications
- Machine and Plant Constructions
- Automotive
- Shipbuilding
- Automation
- Electrical Installations
- Power Plants
Certifications
