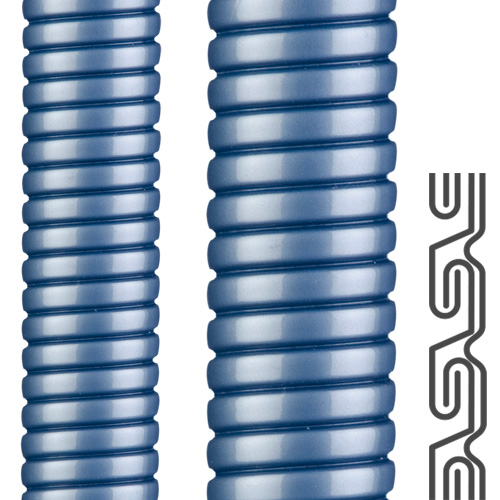

The Flexa FLEXAgraff-PU-AS 12130101011 (Old Part Number 2130.101.011) is an 11.0 x 14.0 mm liquidtight galvanized steel conduit with a blue polyurethane (PU) protective jacket. The bend-limiting, heavy-duty interlocked construction, and PU sheathing combine for outstanding mechanical, abrasion, and watertight protection for wires, cables, pneumatic hoses, and fiber optic bundles. Good for wiring applications on all types of machinery, conveyors, robotics, and automation equipment. Use indoors and outdoors.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 2-3 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$1,474.58 US$1,474.58
2 US$1,400.85 US$2,801.70
5 US$1,327.12 US$6,635.61
10+ US$1,253.39 US$12,533.93+
Unit Cost : US$
Extended Cost : US$1474.58
Add to Quote

Specifications

Product Type

Metal Conduit

Brand

Flexa

Family

FLEXAgraff-PU-AS

Part Number

12130101011

Part Number (Old)

2130.101.011

Colour

Blue

OD Outside Diameter (mm)

14

ID Inside Diameter (mm)

11

Static Bend Radius (mm)

45

Dynamic Bend Radius (mm)

115

Weight (kg|m)

0.15

Package Size

50m Per Roll

Material

Galvanized Steel, Jacket: PU

IP Rating

IP68

Low Temperature Rating (°C)

-50

High Temperature Rating (°C)

100

Extended Temperature (°C)

130

Flammability Rating (UL 94)

V2

Data Sheet

Properties

  • V2 according to UL 94
  • high tensile and twisting strength
  • resistant to oil, benzine and grease
  • widely resistant to solvents and acids
  • free of halogen, silicone, cadmium
  • good performance at low temperatures
  • no untwisting of the conduit
  • very flexible
  • high shielding factor
  • microbe resistant
  • flame-resistant
  • approved acc. to DIN EN IEC 61386-23

Applications

  • Machine and Plant Constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical Installations
