Flexa LIF-M 5801.321.020 / 15801321020

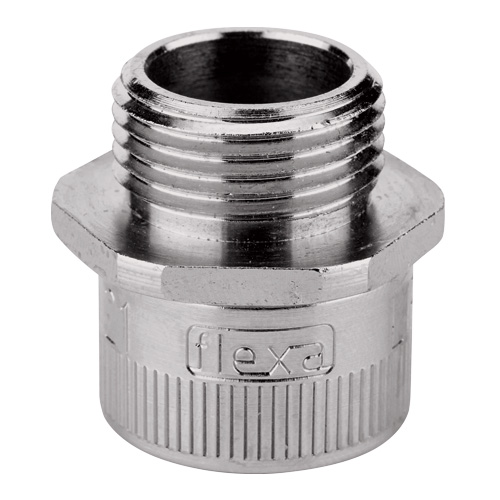

The Flexa LIF-M 15801321020 (Old Part Number 5801.321.020) is described as a metal connector that is straight and fixed with metric M20 x 1.5 outer thread.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | CAD$14.72 | CAD$14.72 |
| 5 | CAD$14.28 | CAD$71.39 |
| 10 | CAD$13.98 | CAD$139.84 |
| 15 | CAD$13.25 | CAD$198.72 |
| 25 | CAD$12.51 | CAD$312.80 |
| 50 | CAD$11.78 | CAD$588.80 |
| 100 | CAD$11.04 | CAD$1,104.00 |
| 250+ | CAD$10.30 | CAD$2,576.00+ |
Unit Cost : CAD$
Extended Cost : CAD$14.72
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | LIF-M |
| Part Number | 15801321020 |
| Part Number (Old) | 5801.321.020 |
| Fits Conduit Types | FLEXAgraff-AS, FLEXAgraff-PU-AS, FLEXAgraff-VA, SPR-AS, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC, SPR-VA |
| Thread Type | Metric |
| Thread Size | M20 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 27 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 21 |
| ΦI Inside Diameter (mm) | 15 |
| ΦB Max Outer Diameter (mm) | 29 |
| Weight (kg|100) | 3.8 |
| Package Size | 50 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- integrated conduit screw out
- covering of the conduit ends
- vibration proof and tension proof
Applications
- machine and plant constructions
- automotive
- automation
- shipbuilding
- electrical installations
Certifications
