Flexa LIF-M 5801.317.020 / 15801317020

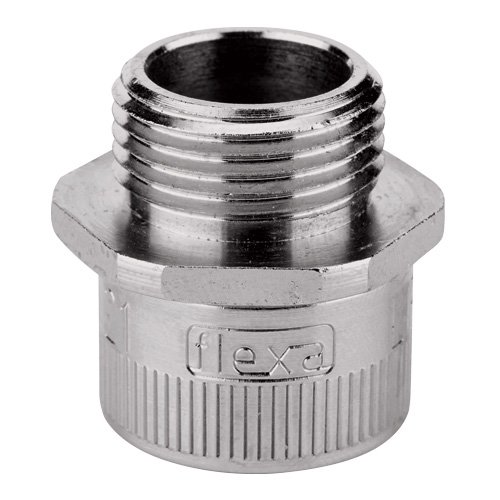

The Flexa LIF-M 15801317020 (Old Part Number 5801.317.020) is described as a metal connector that is straight and fixed with metric M20 x 1.5 outer thread.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-3 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$13.14 | US$13.14 |
| 5 | US$12.75 | US$63.73 |
| 10 | US$12.48 | US$124.83 |
| 15 | US$11.83 | US$177.39 |
| 25 | US$11.17 | US$279.23 |
| 50 | US$10.51 | US$525.60 |
| 100 | US$9.86 | US$985.50 |
| 250+ | US$9.20 | US$2,299.50+ |
Unit Cost : US$
Extended Cost : US$13.14
Specifications
| Product Type | Metal Body Fitting |
|---|---|
| Brand | Flexa |
| Family | LIF-M |
| Part Number | 15801317020 |
| Part Number (Old) | 5801.317.020 |
| Fits Conduit Types | FLEXAgraff-AS, FLEXAgraff-PU-AS, FLEXAgraff-VA, SPR-AS, SPR-PA, SPR-PU-AS, SPR-PU-F, SPR-PVC, SPR-VA |
| Thread Type | Metric |
| Thread Size | M20 x 1.5 |
| Thread Length C (mm) | 10 |
| Body Length D (mm) | 27 |
| Material | Ni-Brass |
| OD Outside Diameter (mm) | 17 |
| ΦI Inside Diameter (mm) | 12 |
| ΦB Max Outer Diameter (mm) | 25 |
| Weight (kg|100) | 2.9 |
| Package Size | 50 pcs |
| IP Rating | IP 40 |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 250 |
Data Sheet
Properties
- integrated conduit screw out
- covering of the conduit ends
- vibration proof and tension proof
Applications
- machine and plant constructions
- automotive
- automation
- shipbuilding
- electrical installations
Certifications
