0242.232.016 / 10242232016 ROHRflex® PA12-S 15.5 x 21.2 mm Black Coarse Profile Corrugated Nylon Conduit

  • 0242.232.016 / 10242232016 ROHRflex® PA12-S 15.5 x 21.2 mm Black Coarse Profile Corrugated Nylon Conduit

Product Name:
0242.232.016 / 10242232016 ROHRflex® PA12-S 15.5 x 21.2 mm Black Coarse Profile Corrugated Nylon Conduit

Flexa Logo
Mfr. Part # 10242232016 Categories , , ,

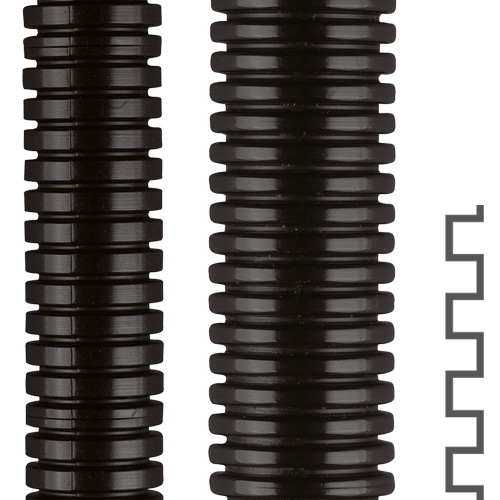

The Flexa ROHRflex PA12-S 10242232016 (Old Part Number 0242.232.016) is a 15.5 x 21.2 mm Black premium PA12 plastic wide corrugation conduit designed for high-performance protective cable routing.

Engineered for robotics-grade applications, this conduit delivers outstanding reverse bending flexibility, durable wall strength, a tight dynamic bend radius, and wide temperature and chemical resistance – it’s well suited for demanding dynamic and continuous-motion installations.

Ideal for routing cables in and around automated machinery, robotics, cobotics,   e-Mobility systems, and other high-motion equipment, as well as general factory wiring in both indoor and outdoor installations.

For a complete protective wiring system solution, combine the Rohrflex® PA12-S conduits with our time-saving FLEXAquick® Quick-Connect IP66/IP68 sealing conduit Fittings. No tools required – simple, quick, easy to install, just snap on and go!

ALTERNATE OPTION:
A direct substitute for conduit 10242232016 is 10242202016. The key difference is in the corrugation:

Both conduits are made from the same material and are fully compatible with all Flexaquick® fittings, clips, and accessories. Functionality remains identical across both options.

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$404.44 US$404.44
2 US$384.22 US$768.44
5 US$364.00 US$1,819.98
10+ US$343.77 US$3,437.74+
Unit Cost : US$
Extended Cost : US$404.44
Add to Quote

Specifications

Package Size

50m (164 ft) per roll
Product Type

Plastic Conduit
Brand

Flexa
Family

ROHRflex PA12-S
Part Number

10242232016
Part Number (Old)

0242.232.016
Colour

Black
OD Outside Diameter (mm)

21.2
ID Inside Diameter (mm)

15.5
Corrugation Profile

Coarse
Static Bend Radius (mm)

45
Dynamic Bend Radius (mm)

75
Weight (kg|m)

0.06
Material

PA12 Modified Plastic
IP Rating

IP68
Low Temperature Rating (°C)

-50
High Temperature Rating (°C)

100
Extended Temperature (°C)

130
Flammability Rating (UL 94)

V2
Customs Tariff Number

3917.32.0050
Country of Origin

Germany

Data Sheet

Properties

  • high alternate bending strength
  • air- and liquid-tight
  • oil and benzine resistant
  • widely resistant to acids and solvents
  • free of silicone, cadmium, halogen
  • self-extinguishing
  • flame retardant
  • UV-resistant

Applications

  • Machine and Plant Constructions
  • Automotive
  • Shipbuilding
  • Automation
  • Electrical Installations
  • Robotics and High Motion Machinery

Certifications
