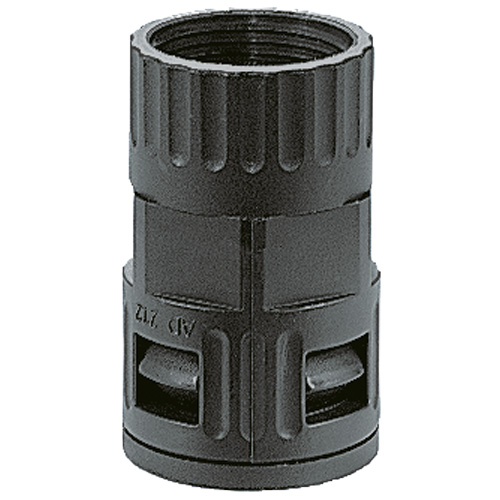

5020.092.208 / 15020092208 RQG2-T Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit, IP68 sealing
The FLEXA RQG2-T 5020.092.208 / 15020092208 is a Trapezoidal T23.0 x 2.0 mm female thread Black FLEXAquick® backshell connector for 21.2 mm OD conduit.
It features the Flexaquick® quick connect electrical conduit fitting system with an integrated lock & release sleeve clip and built-in IP68 sealing.
This conduit connector installs in seconds for “Quick connect on” fitting and conduit assembly or “Quick disconnect off” fitting and conduit disassembly. NO tools required!
The RQG2-T is compatible with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of innovative ROHRflex corrugated nylon PA6, PA12 and multi-layer conduits.
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | US$0.00 | US$0.00+ |
Specifications
| Package Size | 50 pcs |
|---|---|
| Product Type | Plastic Body Fitting |
| Brand | Flexa |
| Family | RQG2-T |
| Part Number | 15020092208 |
| Part Number (Old) | 5020.092.208 |
| Colour | Black |
| Thread Type | Trapezoidal |
| Thread Size | T23.0 x 2.0 |
| Thread Length C (mm) | 12 |
| Body Length D (mm) | 51.5 |
| Material | PA6 Plastic |
| OD Outside Diameter (mm) | 21.2 |
| ΦI Inside Diameter (mm) | 14.5 |
| ΦB Max Outer Diameter (mm) | 29.5 |
| ΦB1 (mm) | 26.8 |
| Weight (kg|100) | 1.6 |
| IP Rating | IP 68 | IP 69K |
| Low Temperature Rating (°C) | -40 |
| High Temperature Rating (°C) | 120 |
| Customs Tariff Number | 3917.40.0090 |
| Country of Origin | Germany |
Data Sheet
Properties
- resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
Applications
- Machine and Plant Constructions
- Automation
- Automotive
- Railway Industry
- Shipbuilding
- Electrical Installations
Certifications
