0239.609.045 / 10239609045 Flexa HG-PET025 Orange PET 0.25mm Tubular Braiding, NW 32, 28 – 45 mm range

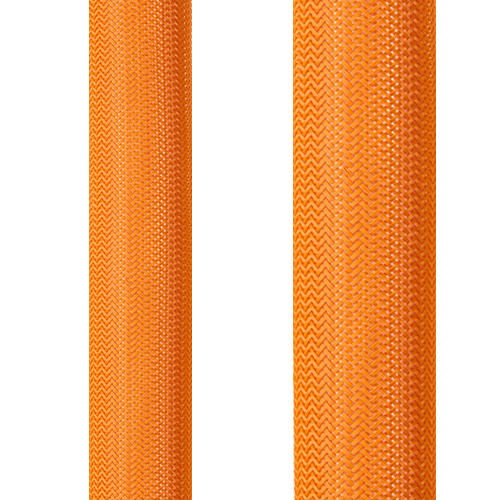

The Flexa HG-PET025 10239609045 is described as a nominal ID 32.0 mm axially compressible, expandable tubular plastic wire braiding consisting of cross woven round Orange 0.25 mm PET monofiles. Over 85% coverage.
Excellent wire & cable bundling protection for EV electric cars, buses, and trains. Applications include, vehicle construction, engine compartment wiring, vehicle interior wiring, under-body wire trunking.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$725.68 | US$725.68 |
| 2 | US$689.40 | US$1,378.79 |
| 5 | US$653.11 | US$3,265.56 |
| 10 | US$616.83 | US$6,168.28 |
| 15 | US$580.54 | US$8,708.16 |
| 20+ | US$544.26 | US$10,885.20+ |
Unit Cost : US$
Extended Cost : US$725.68
Specifications
| Package Size | 100m (328 ft) per roll |
|---|---|
| Product Type | Special Protective Conduit |
| Brand | Flexa |
| Family | HG-PET025 |
| Part Number | 10239609045 |
| Part Number (Old) | 0239.609.045 |
| Colour | Orange |
| Weight (kg|m) | 0.04 |
| Material | PET .25 Plastic |
| Low Temperature Rating (°C) | -55 |
| High Temperature Rating (°C) | 150 |
| Extended Temperature (°C) | 175 |
| NW ID | 32 |
| ID Min | Max | 28.0 – 45.0 |
| Customs Tariff Number | 39173200 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113312358 |
Data Sheet
Properties
- excellent mechanical protection
- low weight, low volume, high flexibility
- density construction, high surface cover
- very good media resistance
- self-extinguishing (DIN 75200, FMVSS 302)
- fire class (DIN 5510 Part 1 + 2)
- 100% recyclable
Applications
- Vehicle Construction
- Engine Compartment
- Vehicle Interior
- Underbody Area
- Bodywork
- Rail Vehicles
- E-Buses
- EV electric car
Certifications
