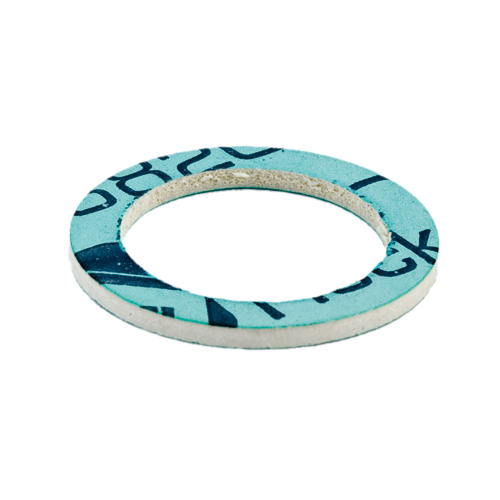

Flexa FRH-N 0331.001.014 / 10331001014 Flexa FRH-N 1 1/2″ NPT flat green Centellen® sealing washer
The Flexa FRH-N 10331001014 (Old Part Number 0331.001.014) is a 1 1/2″ NPT flat Centellen® sealing washer for protecting NPT threads from liquid and dust ingress.
Use the FRH-N sealing washer with all 1 1/2″ NPT FLEXAquick plastic threaded fittings, FLEXA metal threaded conduit fittings, or any other devices with the same thread size, such as cable glands, strain reliefs, and cord grips.
Details:
- ideal for IP 68 sealing requirement
- high mechanical stress tolerance
Material:
- Made of Centellen® (green) WS 3820, aramide fibres bonded with NBR rubber
In Stock: 28
Stock: 28 can ship immediately
Factory Lead-Time: Can ship in 12 – 14 days
Minimum: 1
Multiples: 1
28 in stock
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$3.53 | US$3.53 |
| 5 | US$3.42 | US$17.12 |
| 10 | US$3.35 | US$33.54 |
| 15 | US$3.18 | US$47.66 |
| 20 | US$3.00 | US$60.01 |
| 25 | US$2.82 | US$70.60 |
| 50 | US$2.65 | US$132.38 |
| 100 | US$2.47 | US$247.10 |
| 250+ | US$2.29 | US$573.63+ |
Unit Cost : US$
Extended Cost : US$3.53
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | FRH-N |
| Part Number | 10331001014 |
| Part Number (Old) | 0331.001.014 |
| Colour | Green |
| Thread Type | NPT |
| Thread Size | 1 1/2" |
| Thickness S (mm) | 2 |
| Material | Centellen |
| OD Outside Diameter (mm) | 62 |
| ΦI Inside Diameter (mm) | 47.8 |
| Weight (kg|100) | 0.3 |
| Low Temperature Rating (°C) | -50.0 |
| High Temperature Rating (°C) | 200 |
| Customs Tariff Number | 68159900 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113207753 |
Data Sheet
Properties
- resistant against oil
- protection against water and dust
- UV resistant
- free of halogen
- high mechanical stresses
Certifications
