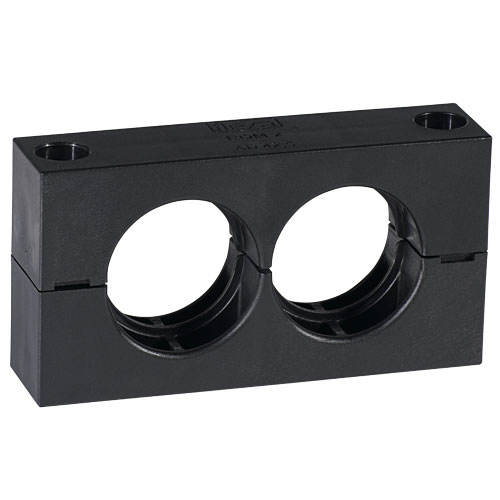

The Flexa RQM2 15020008206 (Old Part Number 5020.008.206) is a 2 x 54.5 mm OD conduit, heavy-duty mounting clamp made for use with corrugated plastic conduits like ROHRflex. The two-piece block-style clamp installs easily anywhere using two M6 bolts (sold separately). Lateral strain relief is also provided by an internal rib which locks firmly into a single conduit corrugation, EN 45545-2 (HL3).

In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 1-2 weeks
Minimum: 1
Multiples: 1
Quantity Unit Price Ext. Price
1 US$21.63 US$21.63
3 US$19.47 US$58.40
5+ US$17.30 US$86.52+
Unit Cost : US$
Extended Cost : US$21.63
Add to Quote

Specifications

Product Type

Accessories

Brand

Flexa

Family

RQM2

Part Number

15020008206

Part Number (Old)

5020.008.206

Colour

Black

Material

PA6 Plastic

OD Outside Diameter (mm)

2 x 54.5

Width A (mm)

151.0

Height (mm)

66.0

D (mm)

33.0

Thickness E (mm)

30.0

Mounting Hole Diameter (mm)

8.5

Weight (kg|100)

12.0

Package Size

5 pcs

Low Temperature Rating (°C)

-40.0

High Temperature Rating (°C)

120.0

Data Sheet

Properties

  • fastening mounting hole
  • ribbed fixing for strain relief
  • assembly of varying sizes joined in line or on top of each other
  • for use in combining with C-profile bar
  • rated V2 [UL94]

Applications

  • Heavy Duty Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations

Certifications
