Flexa ADMF 5010.033.050 / 15010033050

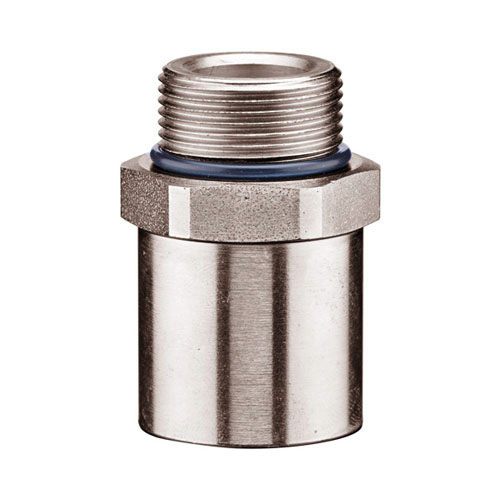

The Flexa ADMF 15010033050 (Old Part Number 5010.033.050) is a nickel-plated brass fire blocker adapter with metric M50x1.5 mm outer and inner threads. Internally, the ADMF adapter contains a fire blocking material that expands when exposed to temperatures over 150°C filling the core of the adapter with fire blocking material sealing any possible fire penetration for a minimum of 30 minutes; exceeding the strict E30 standard. Use with all same sized metric threaded conduit fittings, cable glands, strain reliefs, and cord grips. A sealing O-ring is included.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$245.25 | US$245.25 |
| 2+ | US$196.20 | US$392.40+ |
Unit Cost : US$
Extended Cost : US$245.25
Specifications
| Package Size | 2 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | ADMF |
| Part Number | 15010033050 |
| Part Number (Old) | 5010.033.050 |
| Colour | Metallic |
| Thread Type | Metric |
| Thread Length (mm) | 17 |
| Material | Ni-Brass |
| Weight (kg|100) | 37.1 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 600 |
| Outer Thread Size | M50x1.5 |
| Inner Thread Size | M50x1.5 |
| Body Style | Large Hex |
| Adapter Length (mm) | 70 |
| Customs Tariff Number | 74122000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113305640 |
Data Sheet
Properties
- minimum of 30 minutes fire blocking (E30)
- horizontal and vertical fitting position fire barrier in combination with connectors
- REACH and RoHS compliant Application: Railway industry acc. to EN 45545-3: E30
- Electrical installations for application rules machine and plant constructions acc. to DIN EN 60204
Certifications
