Flexa ADMF 5010.033.020 / 15010033020

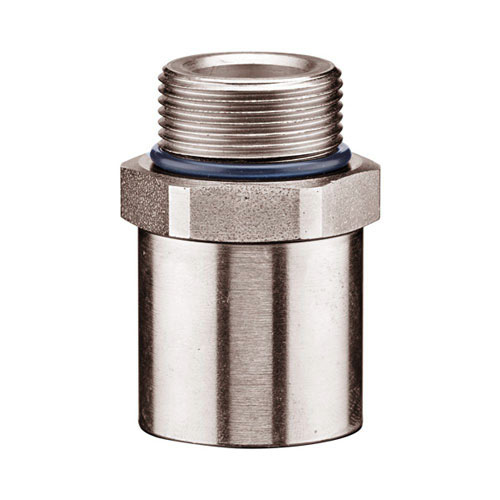

The Flexa ADMF 15010033020 (Old Part Number 5010.033.020) is a nickel-plated brass fire blocker adapter with metric M20x1.5 mm outer and inner threads. Internally, the ADMF adapter contains a fire blocking material that expands when exposed to temperatures over 150°C filling the core of the adapter with fire blocking material sealing any possible fire penetration for a minimum of 30 minutes; exceeding the strict E30 standard. Use with all same sized metric threaded conduit fittings, cable glands, strain reliefs, and cord grips. A sealing O-ring is included.
In Stock: 0
Stock: 0 can ship immediately
Factory Lead-Time: Can ship in 4 weeks
Minimum: 1
Multiples: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | US$63.12 | US$63.12 |
| 5 | US$61.23 | US$306.13 |
| 10 | US$59.96 | US$599.64 |
| 15 | US$56.81 | US$852.12 |
| 20 | US$53.65 | US$1,073.04 |
| 25 | US$50.50 | US$1,262.40 |
| 50 | US$47.34 | US$2,367.00 |
| 100 | US$44.18 | US$4,418.40 |
| 250+ | US$41.03 | US$10,257.00+ |
Unit Cost : US$
Extended Cost : US$63.12
Specifications
| Package Size | 25 pcs |
|---|---|
| Product Type | Accessories |
| Brand | Flexa |
| Family | ADMF |
| Part Number | 15010033020 |
| Part Number (Old) | 5010.033.020 |
| Colour | Metallic |
| Thread Type | Metric |
| Thread Length (mm) | 12 |
| Material | Ni-Brass |
| Weight (kg|100) | 6.7 |
| Low Temperature Rating (°C) | -40.0 |
| High Temperature Rating (°C) | 600 |
| Outer Thread Size | M20x1.5 |
| Inner Thread Size | M20x1.5 |
| Body Style | Large Hex |
| Adapter Length (mm) | 41 |
| Customs Tariff Number | 74122000 |
| Country of Origin | Germany |
| GTIN / EAN Code | 4025113305602 |
Data Sheet
Properties
- minimum of 30 minutes fire blocking (E30)
- horizontal and vertical fitting position fire barrier in combination with connectors
- REACH and RoHS compliant Application: Railway industry acc. to EN 45545-3: E30
- Electrical installations for application rules machine and plant constructions acc. to DIN EN 60204
Certifications
