5030.028.207 / 15030028207 RQHG Black 10.0 mm mounting clip and cap kit for use with 10.0 mm OD corrugated plastic conduits

Product Name:
5030.028.207 / 15030028207 RQHG Black 10.0 mm mounting clip and cap kit for use with 10.0 mm OD corrugated plastic conduits

Flexa Logo
Mfr. Part # 15030028207 Categories , , ,

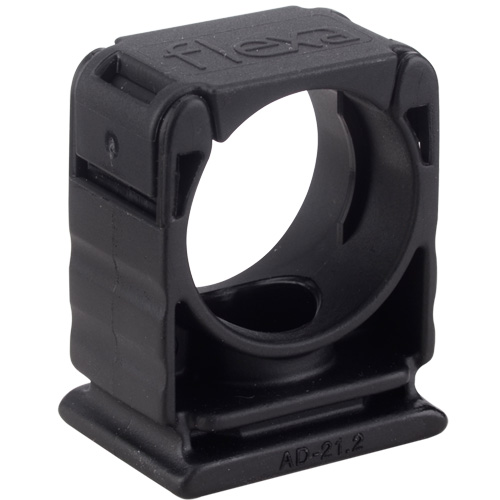

The Flexaquick® RQHG 15030028207 (Old Part Number 5030.028.207) is a Black 10.0 mm OD light duty nylon plastic mounting clip and cap kit for use with corrugated plastic conduits like ROHRflex®.

Installs easily using a single mounting screw or onto a C-profile. Conduits snap into the base clip and are locked-in with the clip cap on top.

Lateral strain relief is provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).

Use the RQHG conduit clip with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Browse over 20 varieties of ROHRflex® corrugated nylon conduits.

In Stock: 200
Stock: 200 can ship immediately
Factory Lead-Time: Can ship in 5 – 7 days
Minimum: 1
Multiples: 1

200 in stock

Quantity Unit Price Ext. Price
1 US$2.42 US$2.42
5 US$2.35 US$11.74
10 US$2.30 US$22.99
15 US$2.18 US$32.67
25 US$2.06 US$51.43
50 US$1.94 US$96.80
100 US$1.82 US$181.50
250 US$1.69 US$423.50
500+ US$1.57 US$786.50+
Unit Cost : US$
Extended Cost : US$2.42
Add to Quote

Specifications

Package Size

50 pcs
Product Type

Accessories
Brand

Flexa
Family

RQHG
Part Number

15030028207
Part Number (Old)

5030.028.207
Colour

Black
Material

PA6 Plastic
OD Outside Diameter (mm)

10
Width A (mm)

19.5
Height (mm)

19
D (mm)

13
Thickness E (mm)

15
Mounting Hole Diameter (mm)

5.5
Weight (kg|100)

0.4
Low Temperature Rating (°C)

-40.0
High Temperature Rating (°C)

120
Customs Tariff Number

3917.40.0090
Country of Origin

Germany
GTIN / EAN Code

4025113221582

Data Sheet

Properties

  • fastening mounting hole
  • ribbed fixing for strain relief
  • assembly of varying sizes joined in line or on top of each other
  • for use in combining with C-profile bar
  • rated V2 [UL94]

Applications

  • Light Applications
  • Machine and Plant Constructions
  • Insulated Electrical Installations
