5030.028.029 / 15030028029 RQHG Grey 34.5 mm mounting clip and cap kit for use with 34.5 mm OD corrugated plastic conduits

Product Name:
5030.028.029 / 15030028029 RQHG Grey 34.5 mm mounting clip and cap kit for use with 34.5 mm OD corrugated plastic conduits

Mfr. Part # 15030028029 Categories Cable Protection Accessories, Conduit Clips and Caps | Light and Medium Duty, IBIS FLEXAquick Fitting 25 Pack, RQHG

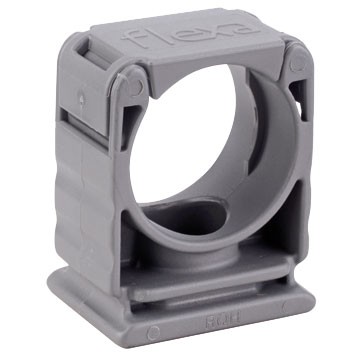

The Flexaquick® RQHG 15030028029 (Old Part Number 5030.028.029) is a Grey 34.5 mm OD light duty nylon plastic mounting clip and cap kit for use with corrugated plastic conduits like ROHRflex®.

Installs easily using a single mounting screw or onto a C-profile. Conduits snap into the base clip and are locked-in with the clip cap on top.

Lateral strain relief is provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).

Use the RQHG conduit clip with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1-2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$4.82	US$4.82
5	US$4.68	US$23.38
10	US$4.58	US$45.79
15	US$4.34	US$65.07
20	US$4.10	US$81.94
25	US$3.86	US$96.40
50	US$3.62	US$180.75
100	US$3.37	US$337.40
250+	US$3.13	US$783.25+

Unit Cost : US$

Extended Cost : US$4.82

Specifications

Package Size	25 pcs
Product Type	Accessories
Brand	Flexa
Family	RQHG
Part Number	15030028029
Part Number (Old)	5030.028.029
Colour	Grey
Material	PA6 Plastic
OD Outside Diameter (mm)	34.5
Width A (mm)	40
Height (mm)	44.4
D (mm)	26
Thickness E (mm)	15
Mounting Hole Diameter (mm)	6.5
Weight (kg\|100)	1.1
Low Temperature Rating (°C)	-40.0
High Temperature Rating (°C)	120
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113220608
