5030.028.016 / 15030028016 RQHG Grey 21.2 mm mounting clip and cap kit for use with 21.2 mm OD corrugated plastic conduits

Product Name:
5030.028.016 / 15030028016 RQHG Grey 21.2 mm mounting clip and cap kit for use with 21.2 mm OD corrugated plastic conduits

Mfr. Part # 15030028016 Categories Cable Protection Accessories, IBIS FLEXAquick Fitting 50 Pack, Light & Medium Duty Conduit Clips and Caps, RQHG

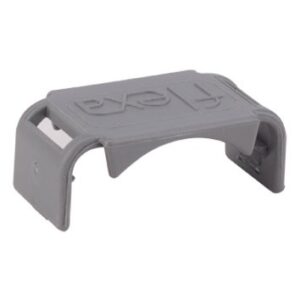

The Flexaquick® RQHG 15030028016 (Old Part Number 5030.028.016) is a Grey 21.2 mm OD light duty nylon plastic mounting clip and cap kit for use with corrugated plastic conduits like ROHRflex®.

Installs easily using a single mounting screw or onto a C-profile. Conduits snap into the base clip and are locked-in with the clip cap on top.

Lateral strain relief is provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).

Use the RQHG conduit clip with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 5 – 7 days

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$2.99	US$2.99
5	US$2.90	US$14.50
10	US$2.84	US$28.41
15	US$2.69	US$40.37
25	US$2.54	US$63.54
50	US$2.39	US$119.60
100	US$2.24	US$224.25
250	US$2.09	US$523.25
500+	US$1.94	US$971.75+

Unit Cost : US$

Extended Cost : US$2.99

Specifications

Package Size	50 pcs
Product Type	Accessories
Brand	Flexa
Family	RQHG
Part Number	15030028016
Part Number (Old)	5030.028.016
Colour	Grey
Material	PA6 Plastic
OD Outside Diameter (mm)	21.2
Width A (mm)	26.5
Height (mm)	33
D (mm)	21
Thickness E (mm)	15
Mounting Hole Diameter (mm)	6.5
Weight (kg\|100)	0.7
Low Temperature Rating (°C)	-40.0
High Temperature Rating (°C)	120
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113220585
