5030.028.013 / 15030028013 RQHG Grey 18.5 mm mounting clip and cap kit for use with 18.5 mm OD corrugated plastic conduits

Product Name:
5030.028.013 / 15030028013 RQHG Grey 18.5 mm mounting clip and cap kit for use with 18.5 mm OD corrugated plastic conduits

Mfr. Part # 15030028013 Categories Cable Protection Accessories, IBIS FLEXAquick Fitting 50 Pack, Light & Medium Duty Conduit Clips and Caps, RQHG

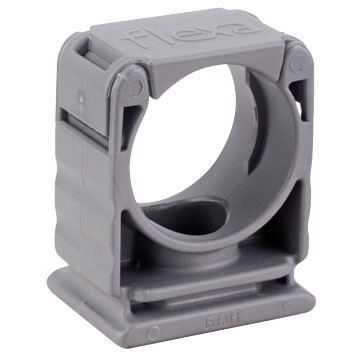

The Flexaquick® RQHG 15030028013 (Old Part Number 5030.028.013) is a Grey 18.5 mm OD light duty nylon plastic mounting clip and cap kit for use with corrugated plastic conduits like ROHRflex®.

Installs easily using a single mounting screw or onto a C-profile. Conduits snap into the base clip and are locked-in with the clip cap on top.

Lateral strain relief is provided by an internal rib which locks firmly into a single conduit corrugation, V2 (UL 94).

Use the RQHG conduit clip with all fine or coarse corrugation plastic conduits of matching outside diameter (OD). Explore over 20 varieties of ROHRflex® corrugated nylon PA6, PA12 and multi-layer conduits.

In Stock: 0

Stock: 0 can ship immediately

Factory Lead-Time: Can ship in 1-2 weeks

Minimum: 1

Multiples: 1

Quantity	Unit Price	Ext. Price
1	US$2.90	US$2.90
5	US$2.81	US$14.07
10	US$2.76	US$27.55
15	US$2.61	US$39.15
25	US$2.47	US$61.63
50	US$2.32	US$116.00
100	US$2.18	US$217.50
250	US$2.03	US$507.50
500+	US$1.89	US$942.50+

Unit Cost : US$

Extended Cost : US$2.9

Specifications

Package Size	50 pcs
Product Type	Accessories
Brand	Flexa
Family	RQHG
Part Number	15030028013
Part Number (Old)	5030.028.013
Colour	Grey
Material	PA6 Plastic
OD Outside Diameter (mm)	18.5
Width A (mm)	24.5
Height (mm)	29
D (mm)	18
Thickness E (mm)	15
Mounting Hole Diameter (mm)	5.5
Weight (kg\|100)	0.6
Low Temperature Rating (°C)	-40.0
High Temperature Rating (°C)	120
Customs Tariff Number	3917.40.0090
Country of Origin	Germany
GTIN / EAN Code	4025113220578
