HG-CU-K
Flexa HG-CU-K Braided Protective Conduits

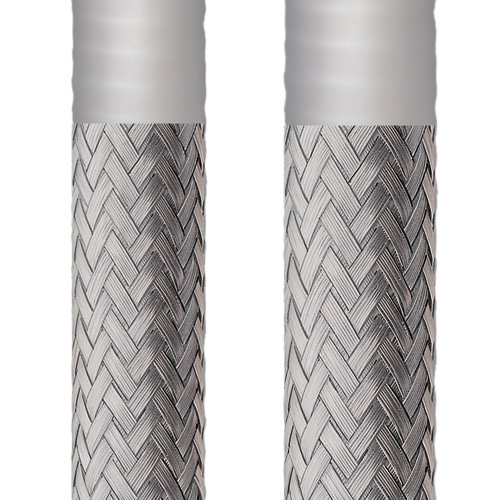

The FLEXA HG-CU-K is a type of wire braiding with an inner soft-PVC carrier conduit jacketed by braided tinned-copper round wires. The braiding features double crossover looped braiding angles.
The inner PVC tubing offers basic moisture and environmental protection, while providing shielding from electromagnetic interference (EMI) and radio frequency interference (RFI).
The coverage is over 85%. EMI & RFI screening up to 30 MHz and to 80dB.
All of the products from this family have the following specifications:
- Material: Tinned Copper | PVC
- Temperature: -50°C ... +250°C
FLEXA HG-CU-K Family of Products
Filters Sort results
Reset Apply
Image | Part Number | Colour | NW ID | ID Min | Max | Material | Weight | Package Size | Quantity | Product Details | Add to Cart |
|---|---|---|---|---|---|---|---|---|---|---|
 | Old: 4051.701.008 | Silver | 6 | 3 – 10.0 | PVC ⋅ Tinned CU | 0.075 | 100m (328 ft) per roll | |||
 | Old: 4051.701.013 | Silver | 10 | 8 – 17.0 | PVC ⋅ Tinned CU | 0.142 | 100m (328 ft) per roll | |||
 | Old: 4051.701.017 | Silver | 15 | 12 – 22.0 | PVC ⋅ Tinned CU | 0.178 | 100m (328 ft) per roll | |||
 | Old: 4051.701.025 | Silver | 20 | 16 – 27.0 | PVC ⋅ Tinned CU | 0.22 | 50m (164 ft) per roll | |||
 | Old: 4051.701.040 | Silver | 25 | 20 – 35.0 | PVC ⋅ Tinned CU | 0.36 | 25m (82 ft) per roll | |||
 | Old: 4051.701.055 | Silver | 35 | 25 – 45.0 | PVC ⋅ Tinned CU | 0.4 | 25m (82 ft) per roll |
