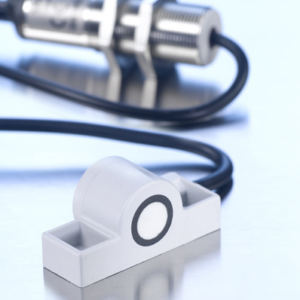

The dbk+4/Empf/KU/3CDD/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
Unlike the standard cylindrical M18 receiver, this version uses a compact cuboidal KU housing, providing an alternative mounting arrangement where a cylindrical receiver is less suitable. It operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × PNP switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
Applications
Replacement receiver for compatible dbk+4 systems
Maintenance and repair
Double-sheet detection systems
Missing-sheet detection systems
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Collating and feeding systems
Applications requiring a compact cuboidal receiver
Installations where cylindrical receiver mounting is less suitable

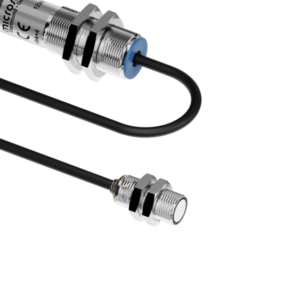

The dbk+4/Empf/M12/3BEE/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This version uses a compact M12 sensing head and operates with a 20–40 mm transmitter-to-receiver spacing, with an optimal spacing of 20 mm ±2 mm. The smaller sensing head makes it useful where mounting space around the sheet path is limited.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × NPN switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
The dbk+4/Empf/M12/3CDD/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This version uses a compact M12 sensing head and operates with a 20–40 mm transmitter-to-receiver spacing, with an optimal spacing of 20 mm ±2 mm. The smaller sensing head makes it useful where mounting space around the sheet path is limited.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × PNP switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
The dbk+4/Empf/M18/3BEE/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This version uses an M18 sensing head and operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm. The M18 design provides the standard sensing-head arrangement used across many dbk+4 installations.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × NPN switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
The dbk+4/Empf/M18/3CDD/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This version uses an M18 sensing head and operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm. The M18 design provides the standard sensing-head arrangement used across many dbk+4 installations.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × PNP switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.

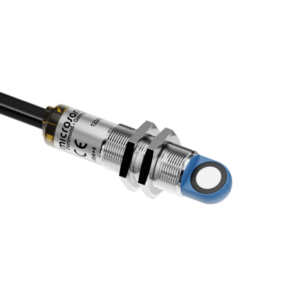

The dbk+4/Empf/WK/3BEE/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This WK version uses a 90° angled M18 receiver head, providing an alternative mounting set-up where a standard straight receiver is less practical. It operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × NPN switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
Applications
Replacement receiver for compatible dbk+4 systems
Maintenance and repair
Double-sheet detection systems
Missing-sheet detection systems
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Collating and feeding systems
Installations requiring a 90° angled receiver head
Applications where cable routing or mounting space is limited
The dbk+4/Empf/WK/3CDD/M18 is the receiver component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the transmitter is already installed and only the receiver needs to be replaced.
This WK version uses a 90° angled M18 receiver head, providing an alternative mounting arrangement where a standard straight receiver is less practical. It operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm.
The receiver evaluates the ultrasonic signal passing through the sheet material and provides separate switching outputs for double-sheet and missing-sheet detection. It provides 2 × PNP switching outputs, with Teach-in for adapting the sensor to the application. The receiver should be matched with the correct compatible dbk+4 transmitter and system configuration.
Applications
Replacement receiver for compatible dbk+4 systems
Maintenance and repair
Double-sheet detection systems
Missing-sheet detection systems
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Collating and feeding systems
Installations requiring a 90° angled receiver head
Applications where cable routing or mounting space is limited
The dbk+4/M12/3BEE/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and similar web or sheet-fed materials. This version uses compact M12 sensing heads for cramped installation spaces, offers a 20–40 mm sensor spacing range with 20 mm optimal spacing, and provides 2 x NPN NO/NC outputs for independent double-sheet and missing-sheet signals. It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties:
Part Number: dbk+4/M12/3BEE/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Head Style: Compact M12 sensing heads Sensor Spacing Range: 20–40 mm Optimal Spacing: 20 mm +/- 2 mm Outputs: 2 x NPN NO/NC
Applications:
The dbk+4/M12/3BEE/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is needed. Typical uses include packaging equipment, print and paper handling systems, film processing lines, and other industrial automation applications where compact sensing heads and precise sheet monitoring are important.
The dbk+4/M12/3CDD/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and similar web or sheet-fed materials. This version uses compact M12 sensing heads for cramped installation spaces, offers a 20–40 mm sensor spacing range with 20 mm optimal spacing, and provides 2 x PNP NO/NC outputs for independent double-sheet and missing-sheet signals. It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties:
Part Number: dbk+4/M12/3CDD/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detection sensor Sensor Type: Ultrasonic Sensor Head Style: Compact M12 sensing heads Sensor Spacing Range: 20–40 mm Optimal Spacing: 20 mm +/- 2 mm Outputs: 2 x PNP NO/NC Output Function: Independent double-sheet and missing-sheet signals Operating Voltage: 20–30 VDC Programming: 3 x Teach-in control inputs Configuration: LinkControl from PC Response Time: 0.5 ms in trigger mode, 2.5 ms in free-run mode Housing Material: M18 nickel-plated brass housing
Applications:
The dbk+4/M12/3CDD/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is needed. Typical uses include packaging equipment, print and paper handling systems, film processing lines, and other industrial automation applications where compact sensing heads and precise sheet monitoring are important.
The dbk+4/M12/3CFF/M18 E+S is a Microsonic ultrasonic double-sheet detection system for reliable identification of single sheets, double sheets and missing sheets in automated sheet-fed and material-handling applications. The transmitter sends an ultrasonic signal through the material to the receiver, allowing the system to detect multiple layers without relying on colour, print or optical contrast.
This version uses compact M12 sensing heads and operates with a 20–40 mm transmitter-to-receiver spacing, with an optimal spacing of 20 mm ±3 mm. It provides two Push-Pull switching outputs for double-sheet and missing-sheet signals and includes IO-Link for configuration, diagnostics and communication with compatible machine controls. The smaller sensing heads make this version well suited to installations where available mounting space is limited.
The dbk+4 family is well suited to paper and lighter sheet materials, including films, fine corrugated board, self-adhesive materials, wafers and similar sheet-fed products.
The dbk+4/M18/3BEE/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version uses compact M18 sensing heads for cramped installation spaces, offers a 20–60 mm sensor spacing range with 40 mm optimal spacing, and provides 2 x NPN NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties
Part Number: dbk+4/M18/3BEE/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Head Style: Compact M18 sensing heads Sensor Spacing Range: 20–60 mm Optimal Spacing: 40 mm +/- 3 mm Outputs: 2 x NPN NO/NC Interface: Teach-in
Applications
The dbk+4/M18/3BEE/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. It helps prevent jams, misfeeds, and product waste in automated material feed processes.
Packaging equipment
Print and paper handling systems
Print finishing and converting machinery
Film processing lines
Sheet-fed industrial automation systems
Applications requiring double-sheet and missing-sheet monitoring
The dbk+4/M18/3CDD/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version uses compact M18 sensing heads for cramped installation spaces, offers a 20–60 mm sensor spacing range with 40 mm optimal spacing, and provides 2 x PNP NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties
Part Number: dbk+4/M18/3CDD/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Head Style: Compact M18 sensing heads Sensor Spacing Range: 20–60 mm Optimal Spacing: 40 mm +/- 3 mm Outputs: 2 x PNP NO/NC Interface: Teach-in
Applications
The dbk+4/M18/3CDD/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. It helps prevent jams, misfeeds, and product waste in automated material feed processes.
Packaging equipment
Print and paper handling systems
Print finishing and converting machinery
Film processing lines
Sheet-fed industrial automation systems
Applications requiring double-sheet and missing-sheet monitoring

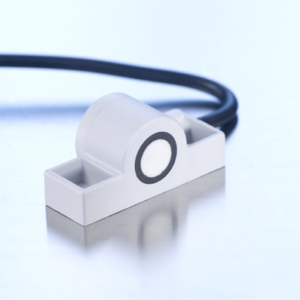

The dbk+4/Sender/KU/K1 is the transmitter component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the receiver is already installed and only the transmitter needs to be replaced.
This version uses a compact cuboidal housing rather than the standard cylindrical M18 sensing-head design. It operates with a transmitter-to-receiver spacing of 40 mm ±3 mm and sends the ultrasonic signal through the sheet material to the receiver, allowing the complete dbk+4 system to distinguish between single sheets, double sheets and missing sheets.
The special housing and long connection cable provide an alternative mounting arrangement for installations where a cylindrical sensing head is less suitable. The transmitter should be matched with the correct compatible dbk+4 receiver and system configuration.
Applications
Replacement transmitter for compatible dbk+4 systems
Maintenance and repair
Double-sheet detection systems
Missing-sheet detection systems
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Applications requiring a compact cuboidal transmitter
Installations where an alternative sensing-head shape is preferred
The dbk+4/Sender/KU/K2 is the transmitter component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the receiver is already installed and only the transmitter needs to be replaced.
This version uses a compact cuboidal housing rather than the standard cylindrical M18 sensing-head design. It operates with a transmitter-to-receiver spacing of 40 mm ±3 mm and sends the ultrasonic signal through the sheet material to the receiver, allowing the complete dbk+4 system to distinguish between single sheets, double sheets and missing sheets.
The special housing and long connection cable provide an alternative mounting arrangement for installations where a cylindrical sensing head is less suitable. The K2 transmitter should be matched with the correct compatible dbk+4 receiver and system configuration when selecting a replacement component.
Applications
Replacement transmitter for compatible dbk+4 systems
Maintenance and repair
Double-sheet detection systems
Missing-sheet detection systems
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Applications requiring a compact cuboidal transmitter
Installations where an alternative sensing-head shape is preferred
The dbk+4/Sender/M12/K1 is the transmitter component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the receiver is already installed and only the transmitter needs to be replaced.
This compact cylindrical M12 transmitter operates with a 20–40 mm transmitter-to-receiver spacing, with an optimal spacing of 20 mm ±2 mm. It sends the ultrasonic signal through the sheet material to the receiver, allowing the complete dbk+4 system to distinguish between single sheets, double sheets and missing sheets.
The smaller M12 housing provides a compact sensing-head option for installations where mounting space is limited. The transmitter should be matched with the correct compatible dbk+4 receiver and system configuration when selecting a replacement component.
Applications
Replacement transmitter for compatible dbk+4 systems
The dbk+4/Sender/M18/K1 is the transmitter component for compatible Microsonic dbk+4 ultrasonic double-sheet detection systems. It is intended for replacement or maintenance applications where the receiver is already installed and only the transmitter needs to be replaced.
This cylindrical M18 transmitter operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm. It sends the ultrasonic signal through the sheet material to the receiver, allowing the complete dbk+4 system to distinguish between single sheets, double sheets and missing sheets.
The M18 housing provides a standard threaded sensing-head format for industrial mounting. The transmitter should be matched with the correct compatible dbk+4 receiver and system configuration when selecting a replacement component.
Applications
Replacement transmitter for compatible dbk+4 systems
The dbk+4/WK/3BEE/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version uses a 90° angled M18 receiver head for installations where mounting space or cable routing makes an angled sensing layout more practical, offers a 20–60 mm sensor spacing range with 40 mm optimal spacing, and provides 2 x NPN NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties
Part Number: dbk+4/WK/3BEE/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Head Style: 90° angled M18 receiver head Sensor Spacing Range: 20–60 mm Optimal Spacing: 40 mm +/- 2 mm Outputs: 2 x NPN NO/NC Interface: Teach-in
Applications
The dbk+4/WK/3BEE/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. Its angled receiver-head design is useful where installation space, mounting orientation, or cable routing makes a standard inline layout less practical.
Packaging equipment
Print and paper handling systems
Print finishing and converting machinery
Film processing lines
Sheet-fed industrial automation systems
Installations requiring a 90° angled receiver-head layout
Applications requiring double-sheet and missing-sheet monitoring
The dbk+4/WK/3CDD/M18-E+S is a Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in paper, film, metal-laminated materials, fine corrugated board, and wafers. This version uses a 90° angled M18 receiver head for installations where mounting space or cable routing makes an angled sensing layout more practical, offers a 20–60 mm sensor spacing range with 40 mm optimal spacing, and provides 2 x PNP NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, print and converting systems, and other automation applications where dependable sheet separation monitoring is required. The sensor supports Teach-in programming, LinkControl configuration, and fast response for demanding industrial use.
Properties
Part Number: dbk+4/WK/3CDD/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Head Style: 90° angled M18 receiver head Sensor Spacing Range: 20–60 mm Optimal Spacing: 40 mm +/- 2 mm Outputs: 2 x PNP NO/NC Interface: Teach-in
Applications
The dbk+4/WK/3CDD/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required. Its angled receiver-head design is useful where installation space, mounting orientation, or cable routing makes a standard inline layout less practical.
Packaging equipment
Print and paper handling systems
Print finishing and converting machinery
Film processing lines
Sheet-fed industrial automation systems
Installations requiring a 90° angled receiver-head layout
Applications requiring double-sheet and missing-sheet monitoring
The dbk+4/WK/3CFF/M18 E+S is a Microsonic ultrasonic double-sheet detection system for reliable identification of single sheets, double sheets and missing sheets in automated sheet-fed and material-handling applications. The transmitter sends an ultrasonic signal through the material to the receiver, allowing the system to detect multiple layers without relying on colour, print or optical contrast.
This WK version uses a 90° angled M18 receiver head, making it useful where mounting space or cable routing makes a standard inline receiver less practical. It operates with a 20–60 mm transmitter-to-receiver spacing, with an optimal spacing of 40 mm ±3 mm, and provides two Push-Pull switching outputs for double-sheet and missing-sheet signals. IO-Link supports configuration, diagnostics and communication with compatible machine controls.
The dbk+4 family is well suited to paper and lighter sheet materials, including films, fine corrugated board, self-adhesive materials, wafers and similar sheet-fed products.
Applications
Double-sheet detection
Missing-sheet detection
Sheet-fed printing equipment
Paper handling systems
Packaging machinery
Print and converting machinery
Collating and feeding systems
Self-adhesive film processing
Fine corrugated board handling
Wafer and PCB handling
Installations requiring a 90° angled receiver
Applications where cable routing or mounting space is limited
The dbk+5/3BEE/M18-E+S is a high-performance Microsonic ultrasonic double sheet detector for reliable detection of double sheets, missing sheets, and single-sheet conditions in thicker and more demanding materials including plastic sheets, self-adhesive films, sheet metal, and fine corrugated cardboard. This version offers a 30–70 mm sensor spacing range with 50 mm optimal spacing and provides 2 x NPN NO/NC outputs for independent double-sheet and missing-sheet signals.
It is used in OEM machinery, packaging equipment, converting systems, and other industrial automation applications where dependable sheet separation monitoring is required for heavier or thicker materials. The sensor supports Teach-in programming, fast response, and durable performance in demanding production environments.
Properties
Part Number: dbk+5/3BEE/M18-E+S Brand: Microsonic Product Type: Ultrasonic double sheet detector Sensor Spacing Range: 30–70 mm Optimal Spacing: 50 mm +/- 3 mm Outputs: 2 x NPN NO/NC Interface: Teach-in
Applications
The dbk+5/3BEE/M18-E+S is used in sheet-fed and web-handling machinery where reliable distinction between single sheets, double sheets, and missing sheets is required for thicker or more demanding materials. It helps prevent jams, misfeeds, and product waste in automated feed processes handling materials beyond the typical lighter-duty double-sheet range.
Packaging equipment
Print and converting machinery
Plastic sheet handling applications
Self-adhesive film processing lines
Sheet metal feed applications
Fine corrugated cardboard handling
Applications requiring double-sheet and missing-sheet monitoring for thicker materials
