Showing 1–20 of 32 results
The SIA05-CE-NPN-NO+NC-HR, model # SIA000115 is a 5.0 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 0.7 x 1.0 mm
- Minimum distance between sensors: 25 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1500 Hz
- Compact size, easy two bolt installation
The SIA05-CE-NPN-NO+NC-R, model # SIA000113 is a 5.0 mm diameter inductive ring sensor with NPN NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 0.7 x 1.0 mm
- Minimum distance between sensors: 25 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1500 Hz
- Compact size, easy two bolt installation
The SIA05-CE-PNP-NO+NC-HR, model # SIA000138 is a 5.0 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 0.7 x 1.0 mm
- Minimum distance between sensors: 25 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1500 Hz
- Compact size, easy two bolt installation
The SIA05-CE-PNP-NO+NC-R, model # SIA000136 is a 5.0 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 0.7 x 1.0 mm
- Minimum distance between sensors: 25 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1500 Hz
- Compact size, easy two bolt installation
The SIA100-CE-NPN-NO+NC-HR, model # SIA000135 is a 100 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 12 x 20 mm
- Minimum distance between sensors: 650 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 100 Hz
- Compact size, easy two bolt installation
The SIA100-CE-NPN-NO+NC-R, model # SIA000134 is a 100 mm diameter inductive ring sensor with NPN NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 12 x 20 mm
- Minimum distance between sensors: 650 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 100 Hz
- Compact size, easy two bolt installation

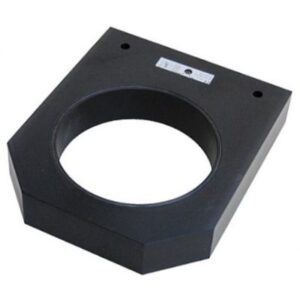

The SIA100-CE-PNP-NO+NC-HR, model # SIA000158 is a 100 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 12 x 20 mm
- Minimum distance between sensors: 650 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 100 Hz
- Compact size, easy two bolt installation
The SIA100-CE-PNP-NO+NC-R, model # SIA000157 is a 100 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 12 x 20 mm
- Minimum distance between sensors: 650 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 100 Hz
- Compact size, easy two bolt installation

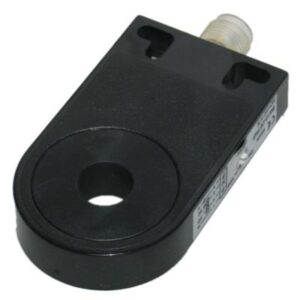

The SIA12-CE-NPN-NO+NC-HR, model # SIA000118 is a 12.0 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA12-CE-NPN-NO+NC-R, model # SIA000116 is a 12.0 mm diameter inductive ring sensor with NPN NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA12-CE-PNP-NO+NC-HR, model # SIA000141 is a 12.0 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA12-CE-PNP-NO+NC-R, model # SIA000139 is a 12.0 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA15-CE-NPN-NO+NC-HR, model # SIA000121 is a 15.0 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA15-CE-NPN-NO+NC-R, model # SIA000119 is a 15.0 mm diameter inductive ring sensor with NPN NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA15-CE-PNP-NO+NC-HR, model # SIA000144 is a 15.0 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA15-CE-PNP-NO+NC-R, model # SIA000142 is a 15.0 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 1.2 x 2.0 mm
- Minimum distance between sensors: 30 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA22-CE-NPN-NO+NC-HR, model # SIA000124 is a 22.0 mm diameter inductive ring sensor with NPN NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 3.0 x 6.0 mm
- Minimum distance between sensors: 60 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA22-CE-NPN-NO+NC-R, model # SIA000122 is a 22.0 mm diameter inductive ring sensor with NPN NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 3.0 x 6.0 mm
- Minimum distance between sensors: 60 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation

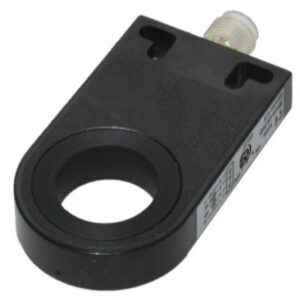

The SIA22-CE-PNP-NO+NC-HR, model # SIA000147 is a 22.0 mm diameter inductive ring sensor with PNP NO/NC output, M12 | 4-pin connection.
Details:
- Minimum detectable object size: 3.0 x 6.0 mm
- Minimum distance between sensors: 60 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
The SIA22-CE-PNP-NO+NC-R, model # SIA000145 is a 22.0 mm diameter inductive ring sensor with PNP NO/NC output, 2 metre (6 ft) cable connection.
Details:
- Minimum detectable object size: 3.0 x 6.0 mm
- Minimum distance between sensors: 60 mm
- Pulse stretching: up to 100 mS, selectable activate / deactivate
- Switching frequency: up to 1000 Hz
- Compact size, easy two bolt installation
